Description

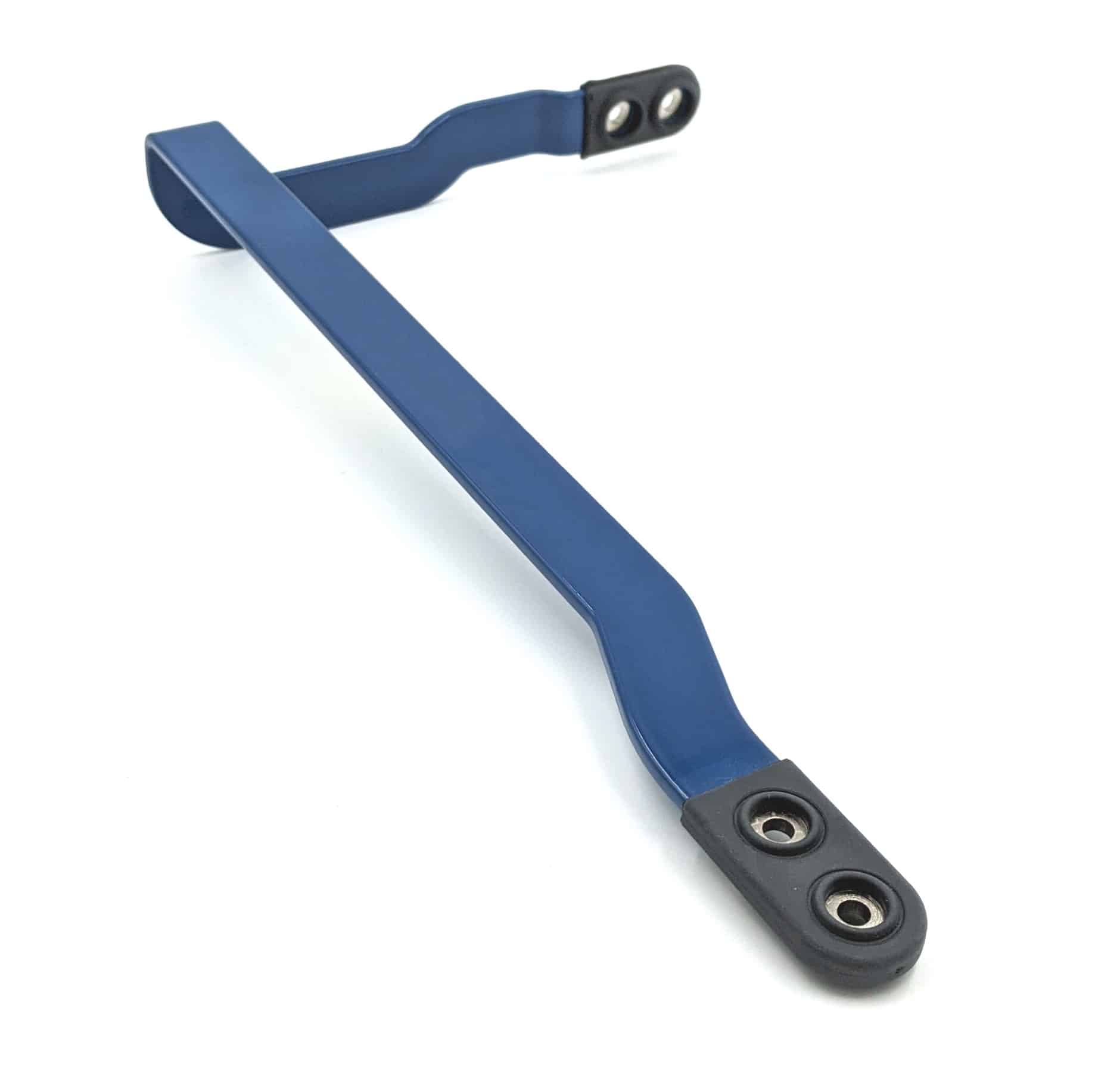

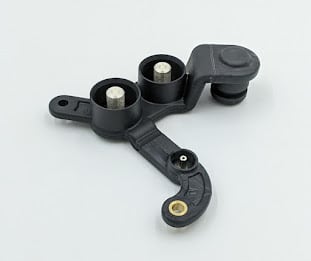

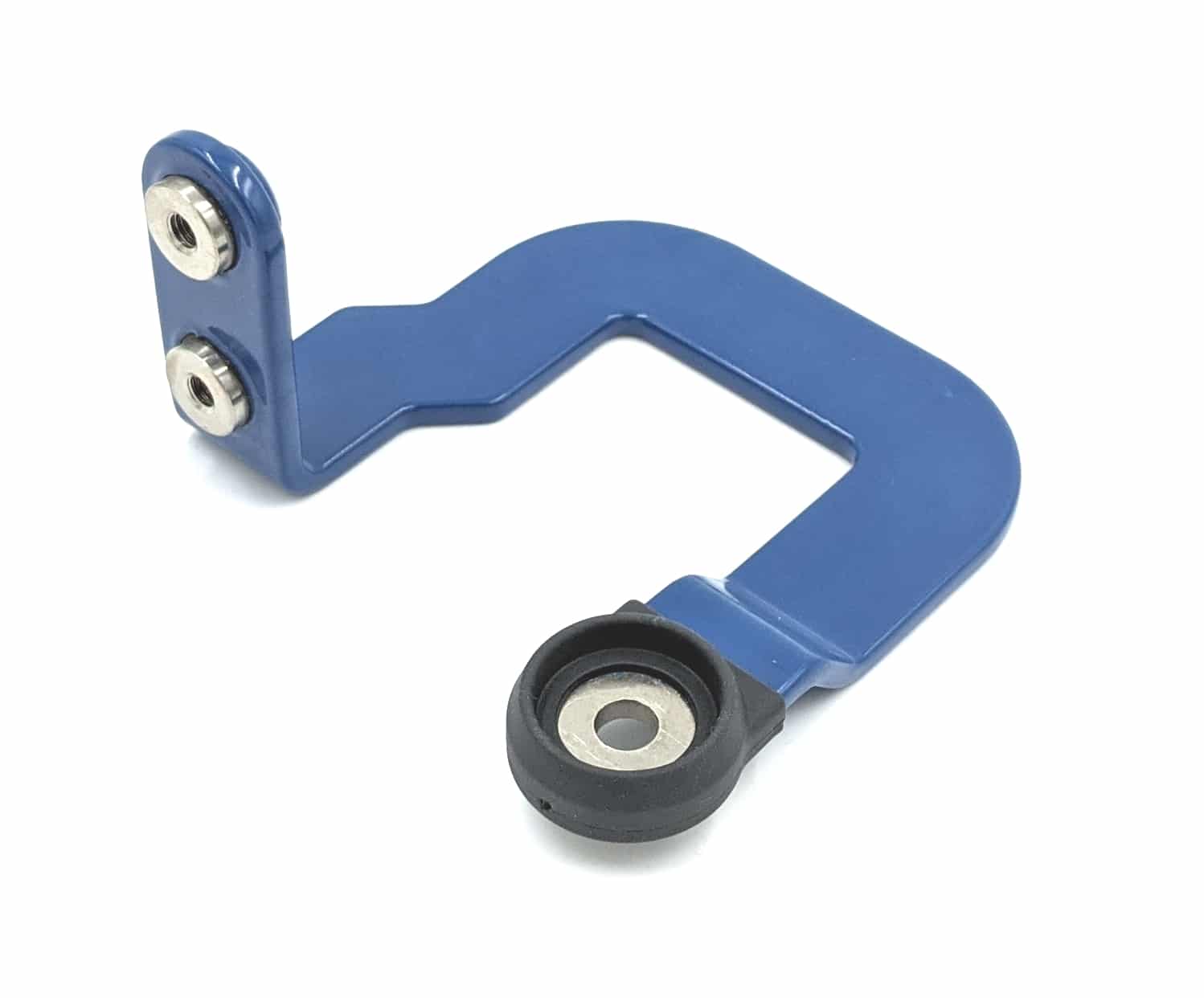

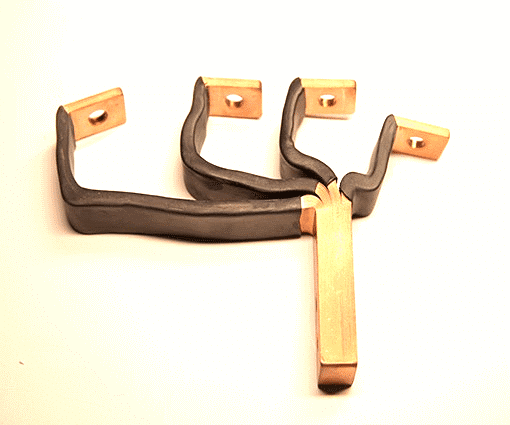

High voltage rigid and flexible (braid or laminated) busbars and custom terminals/lugs for any application. Copper and Aluminum. Custom geometry with overmolded features for securement, routing, and/or sealing. Powdercoat and epoxy dip capabilities. Optional overmolding provides enhanced insulation thickness provides environmental sealing along with greater durability and electrical performance to standard coated busbars.

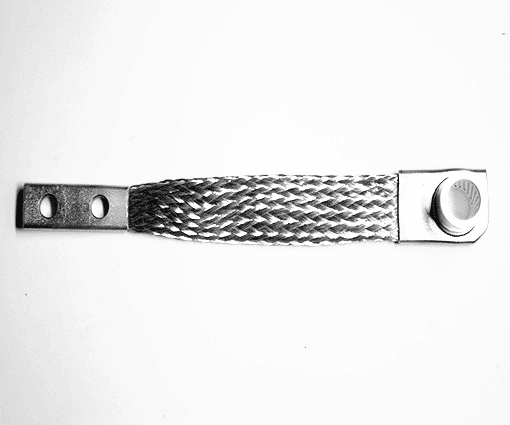

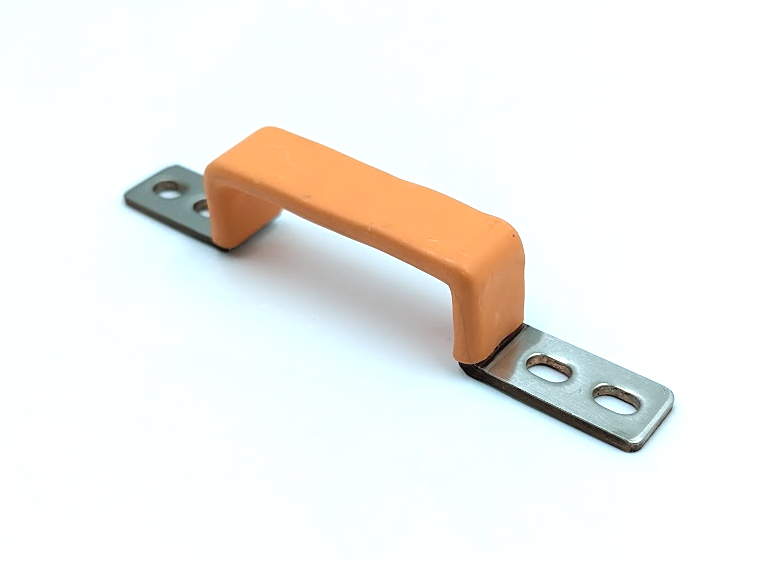

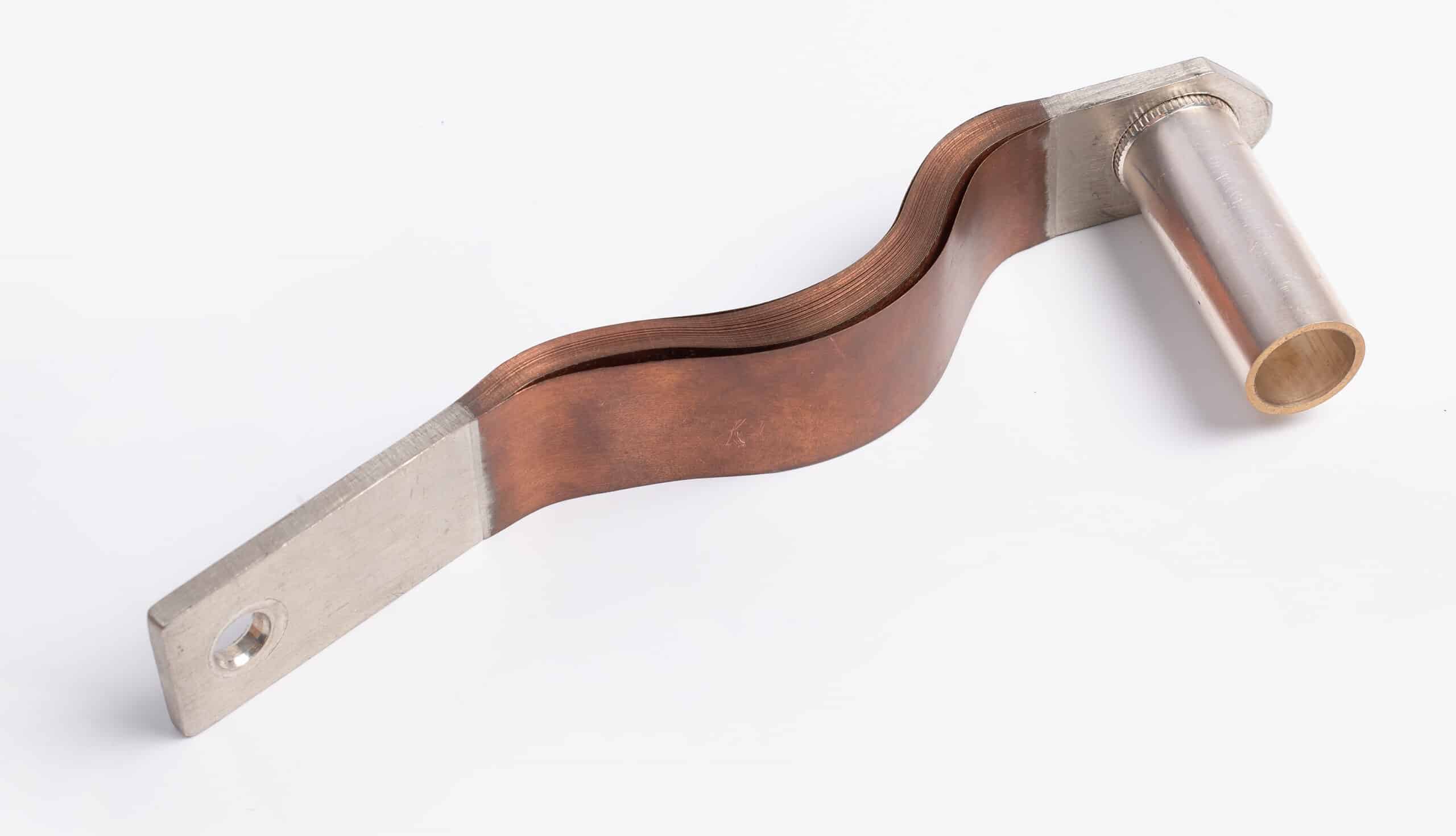

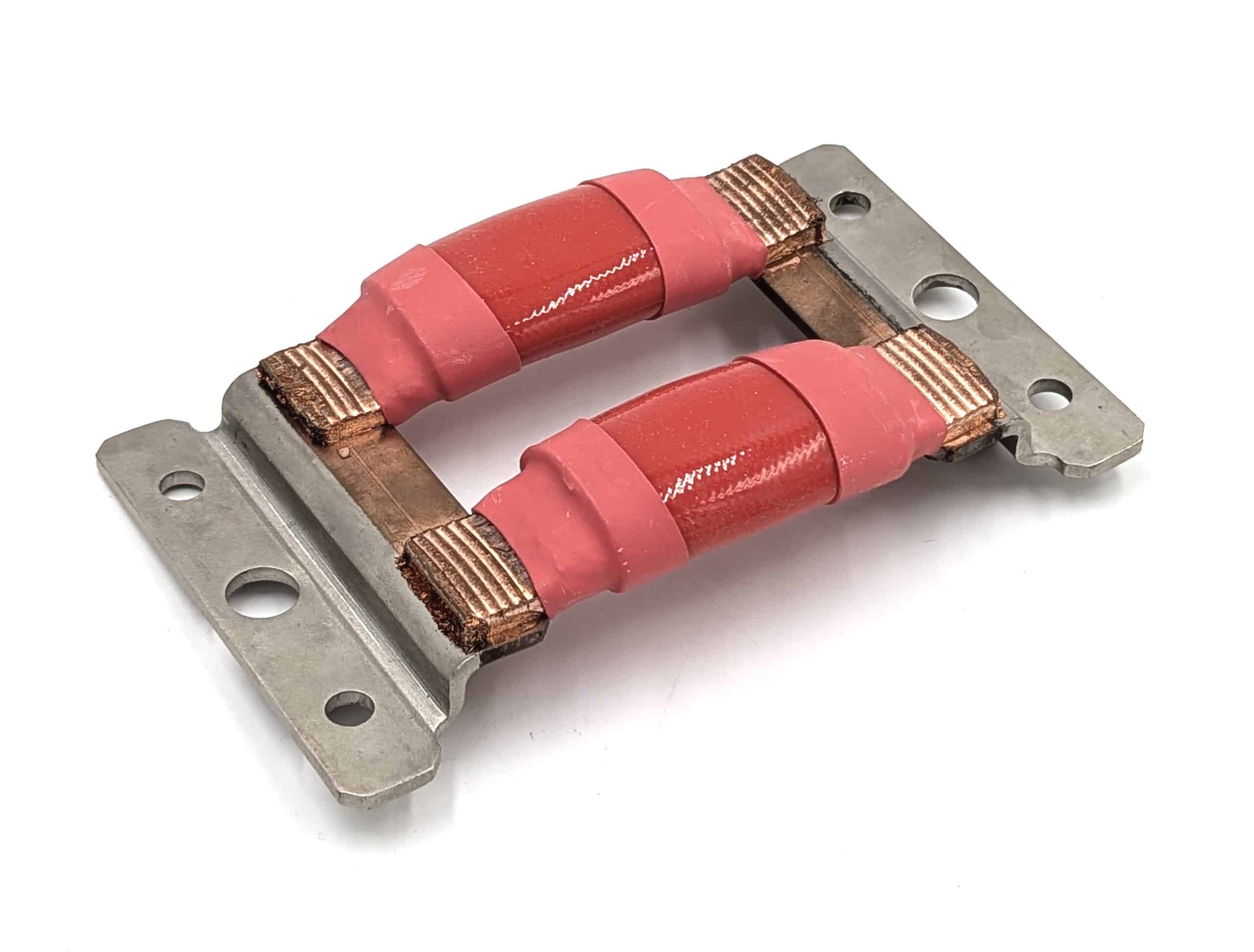

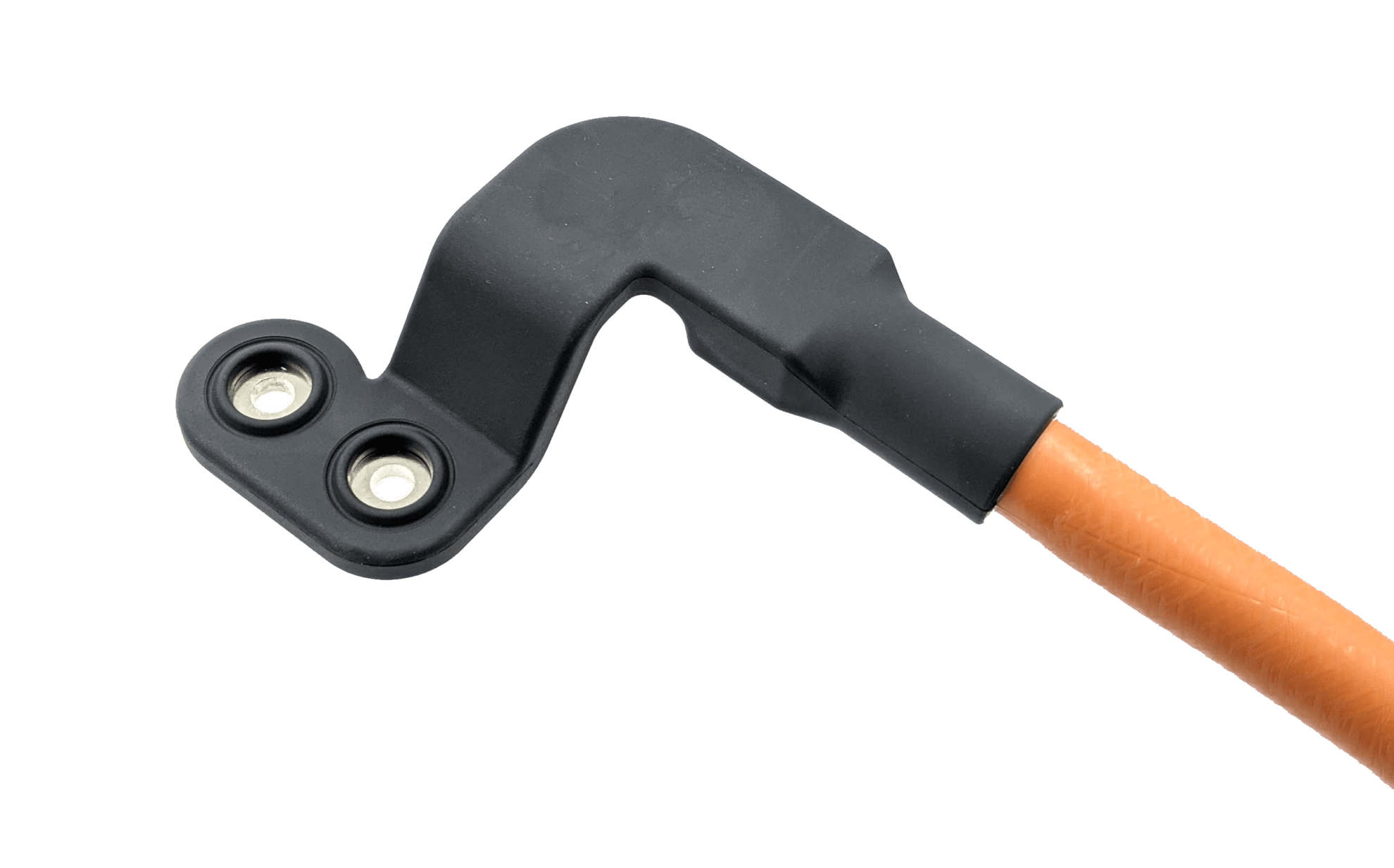

Flexible busbar options or hybrid rigid to layered/braided flex or to jacketed cable allow for unique routing solutions and accommodate large tolerance stack up requirements.
Customized product, please contact us for your application.
Features

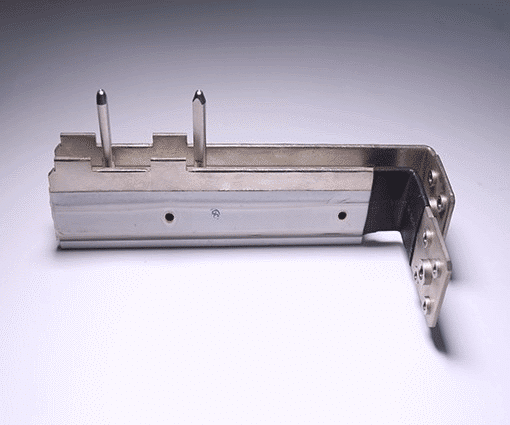

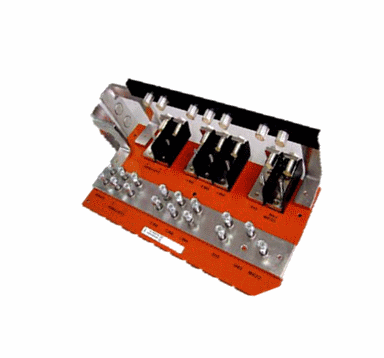

- Rigid, Flex, and Laminated Busbars - Copper and Aluminum
- Bare, Coated, Dipped or Overmolded
- Various plating options: Nickel and Silver typical

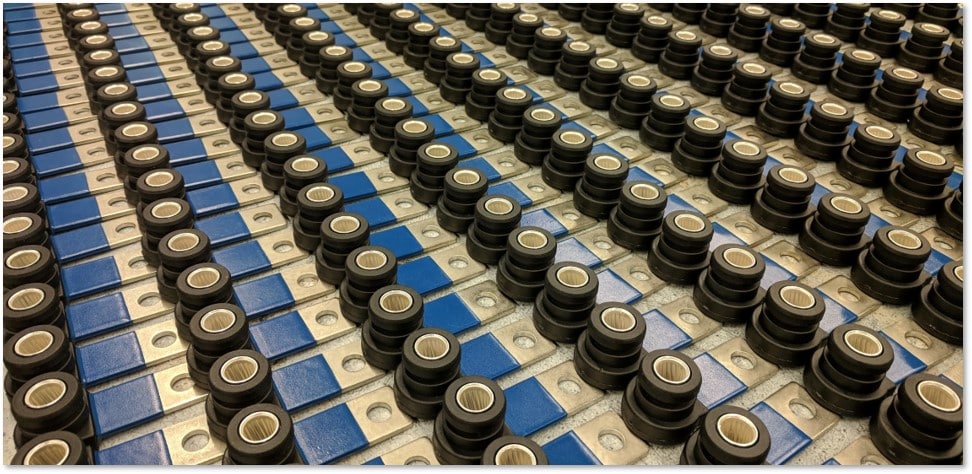

- Value add options (weld/brazing, push nuts, studs, RADSOK terminals)
- Custom routing and overmold features
- Enhanced Sealing and Insulation Resistance

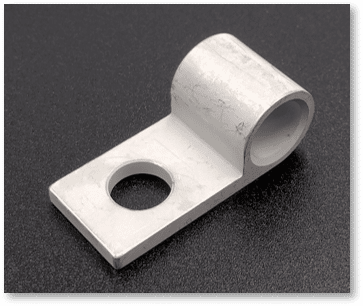

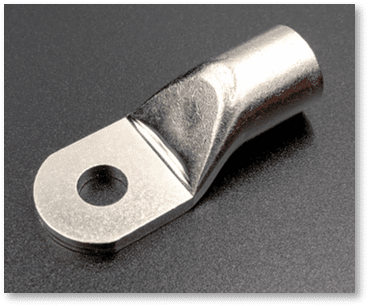

- Custom cast or formed lugs & terminals
Specifications
- Voltage600, 800, 1000, 1500, 2000 VDC typical (with insulation)
- CurrentCurrent applications from 10A to 800A+
- SealingIP67 & IP6K9K typical, additional air leak rates
