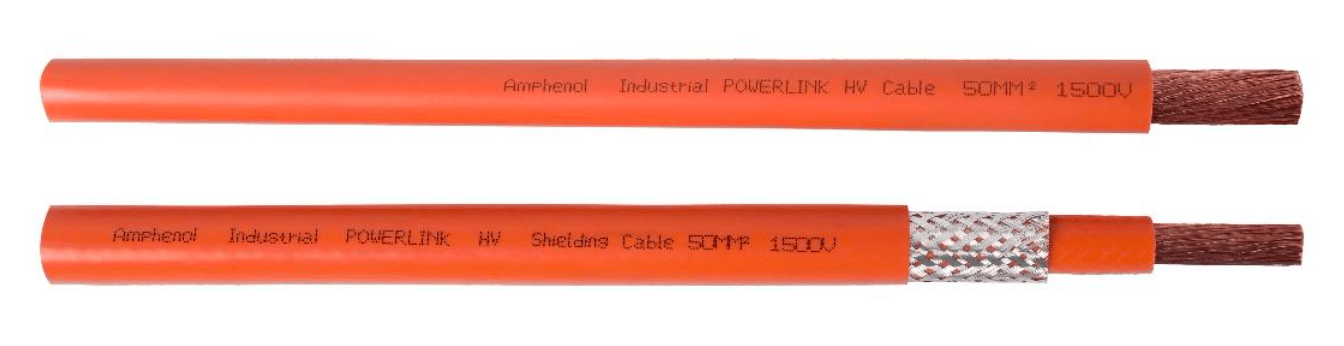

    Amphenol PowerLink HV Cable is used for high voltage, high temperature, and flame-resistance applications.  PowerLink provides a high voltage, flexible, electromagnetically shielded cable for applications on EV, HEV, FCEV, Battery and Energy Storage wiring systems with stranding options from 2.5 up to 150mm2 – with and without shielding.  Compatible with PowerLok G1 connectors and many other Amphenol EV connectors.


    1. Reliable for high-voltage & high-current conditions
    2. Flexible and easy to handle for cable routing and assembly
    3. Shielded (tinned copper) and unshielded versions
    4. High strand count
    5. Short lead times


    1. Rated Voltage
      up to 1500V DC
    2. Rated Temperature
      7P0: -40°C to +125°C | 7P3: -40°C to +150°C (3000 hr ageing duration)
    3. Insulation Resistance
      ≥1×10^9 Ω.mm (ISO 6722 6.3)
    4. Material Characteristics
      XLPE jacket | Low Smoke, No halogen, Flame Retardant
