Product Overview

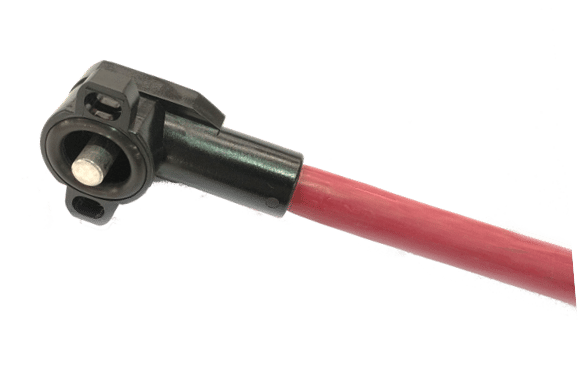

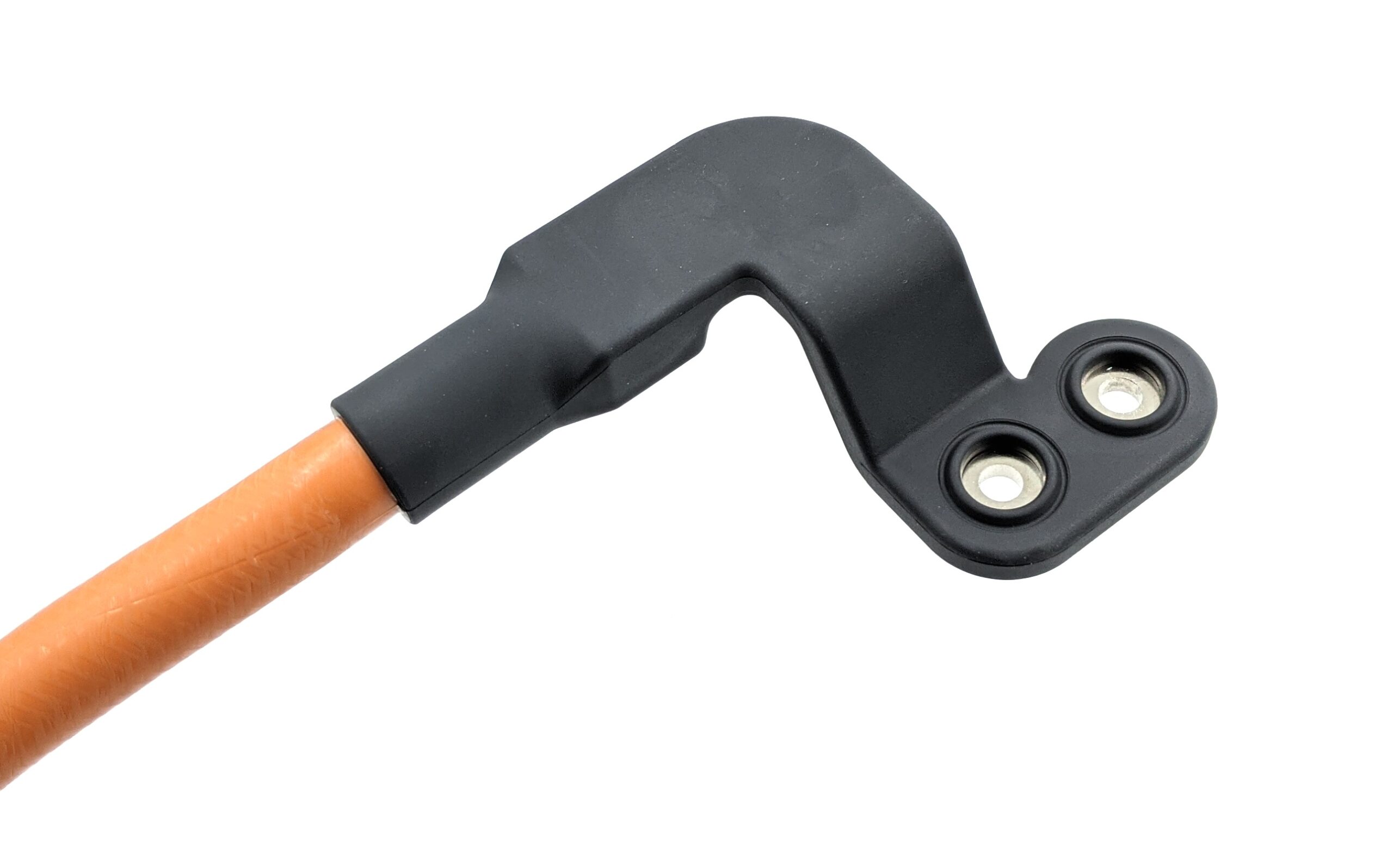

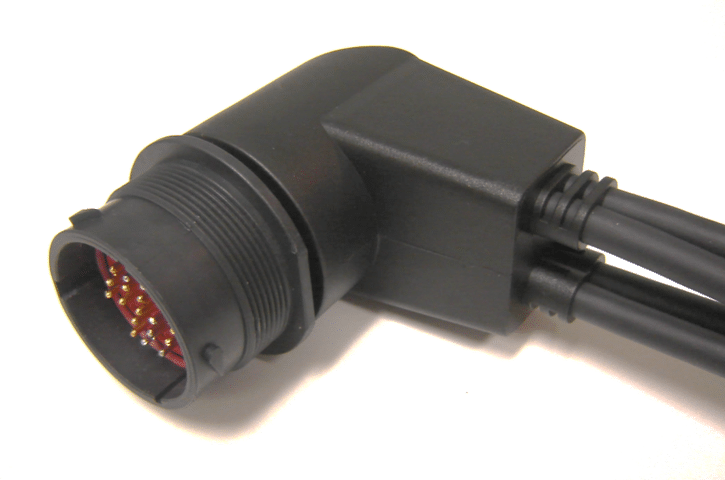

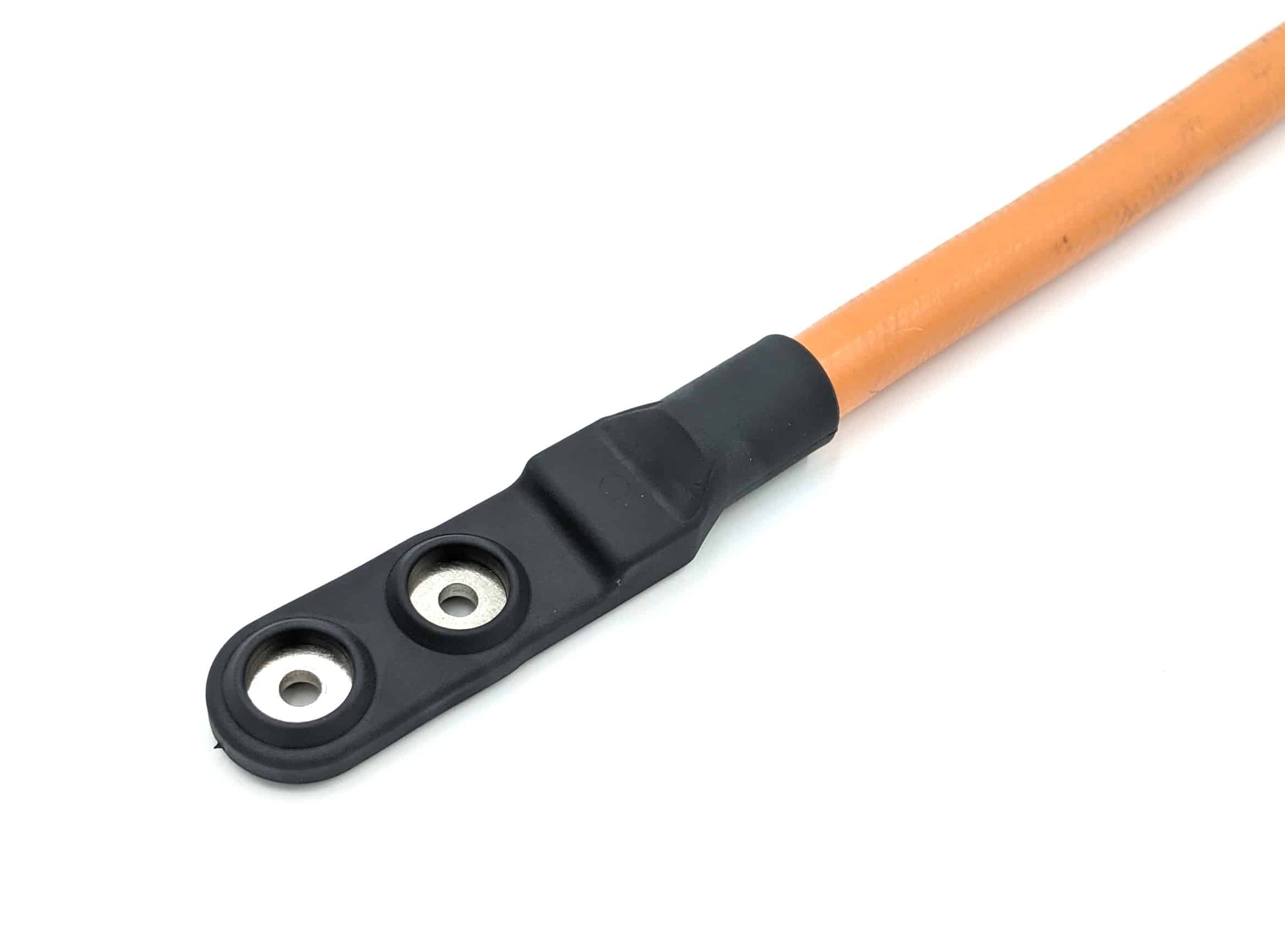

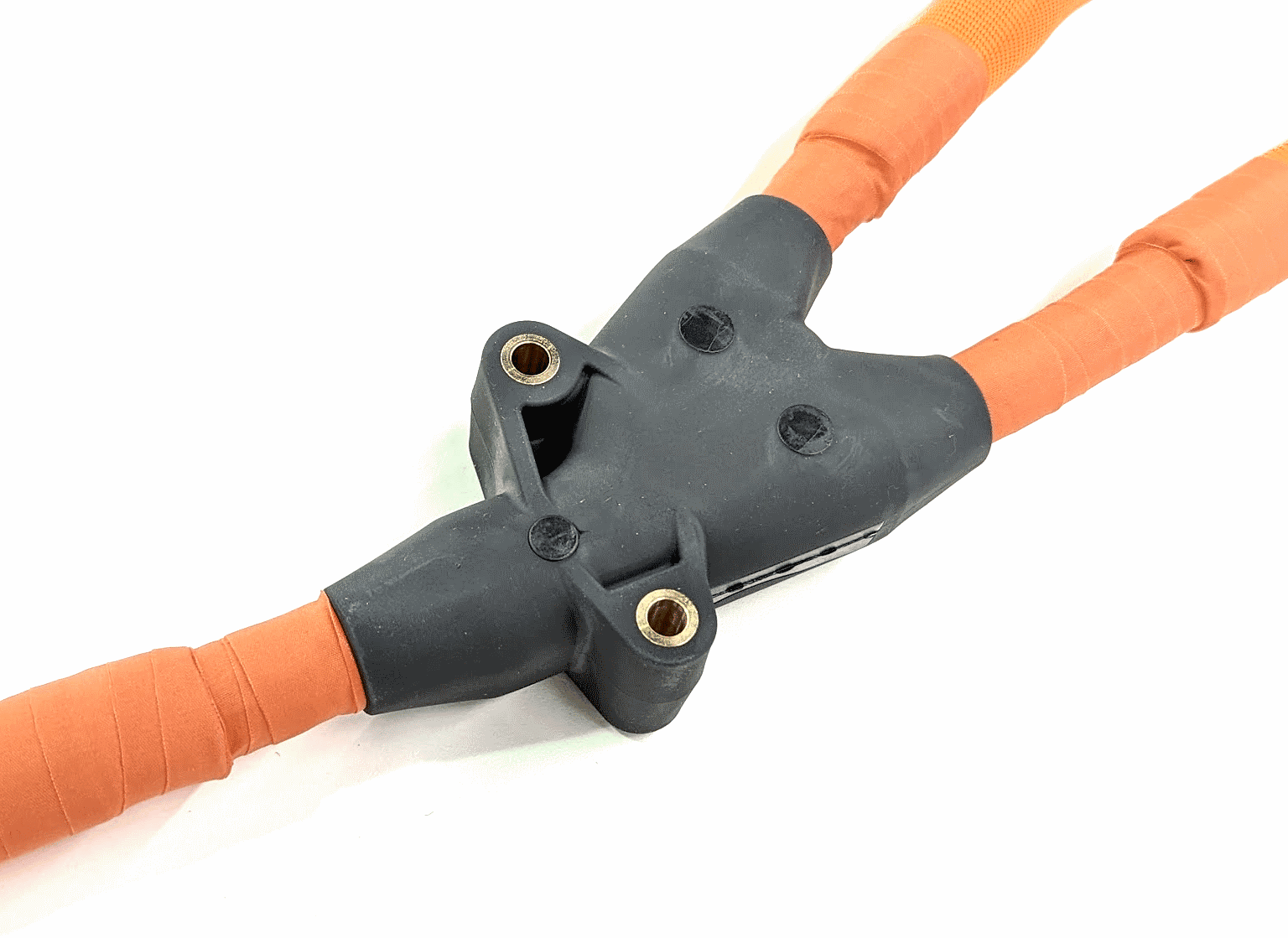

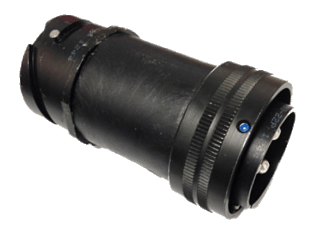

Custom molded solutions (Connectors, fuses, splices, flange, routing aid, clamp, routing/securement, and backshell overmolds, etc.) for low & high voltage applications (48V, 60V, 600V, 1000V, 1500V, 2kV+) provide extreme sealing and electrical isolation while reducing size and space for critical routing/packaging requirements. Options with and without shielding. Hybrid cable and busbar (rigid and flexible) integration options. External and internal termination options include ultrasonic welding, mechanical crimping, EMP crimping, bolt down busbar/lug and RADSOK options.
Features

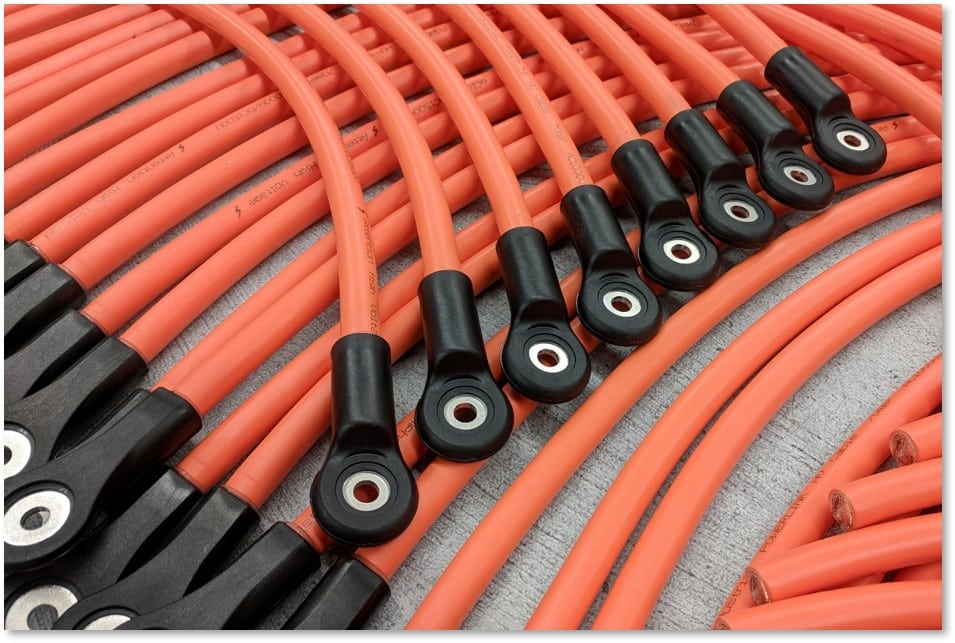

- Molded Connectors, Fuses, Splices, Securement, Routing Geometry, Backshell Overmolds, Lug/Terminal Overmolds - With and Without Shielding
- Customization Options: Overmold geometry/size/orientation, Electrical capabilities, Splices, Shielding, Sealing and more
- Material options for different environments, temperatures, and chemicals
- Enhanced Sealing and Insulation Resistance
- Cable jacket to overmold material bonding - enhanced durability and sealing
- Integrate multi-conductor and discrete cable, rigid & flexible busbars
- Low and High Voltage Options
- Shielded and non-shielded solutions

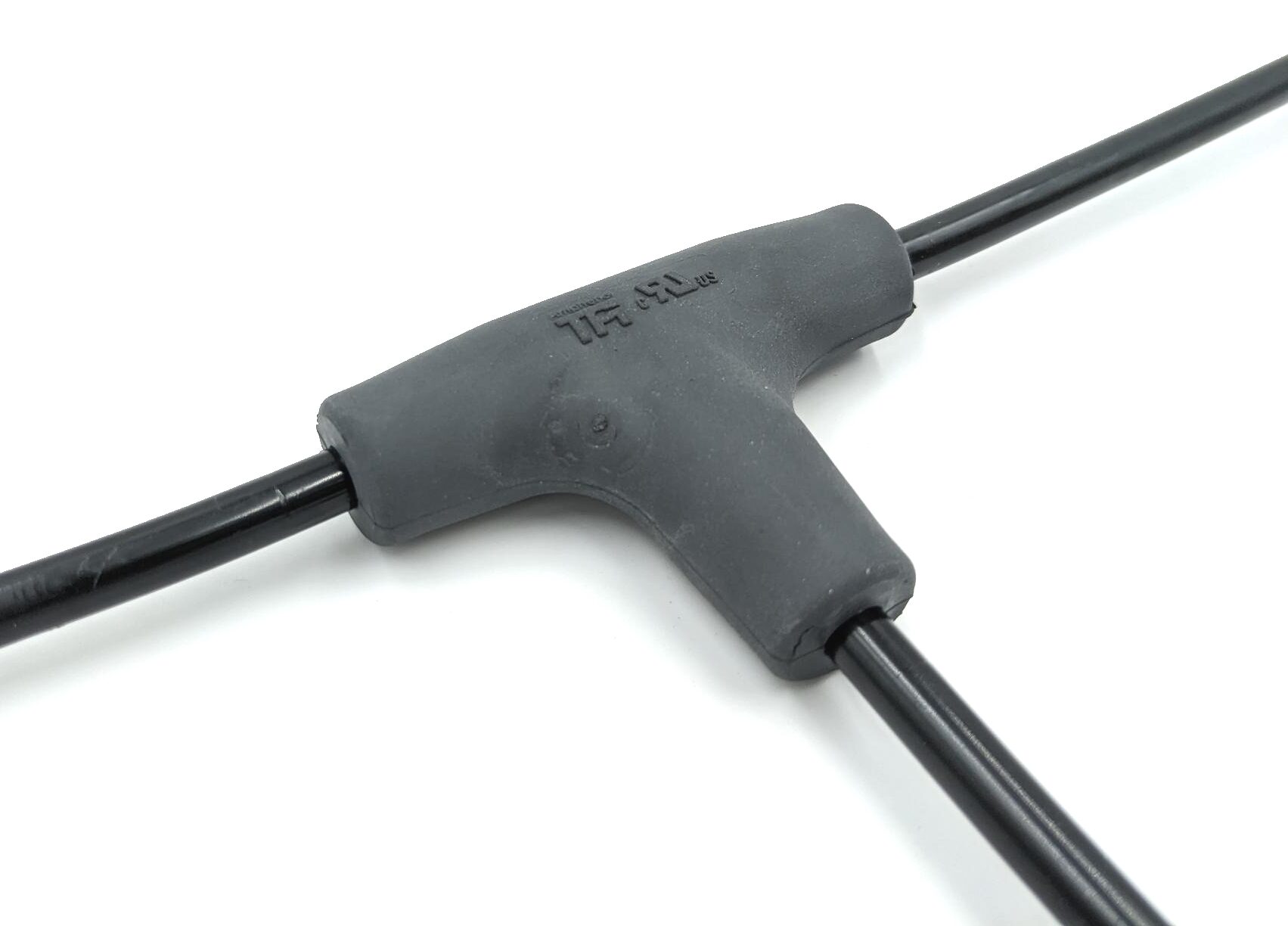

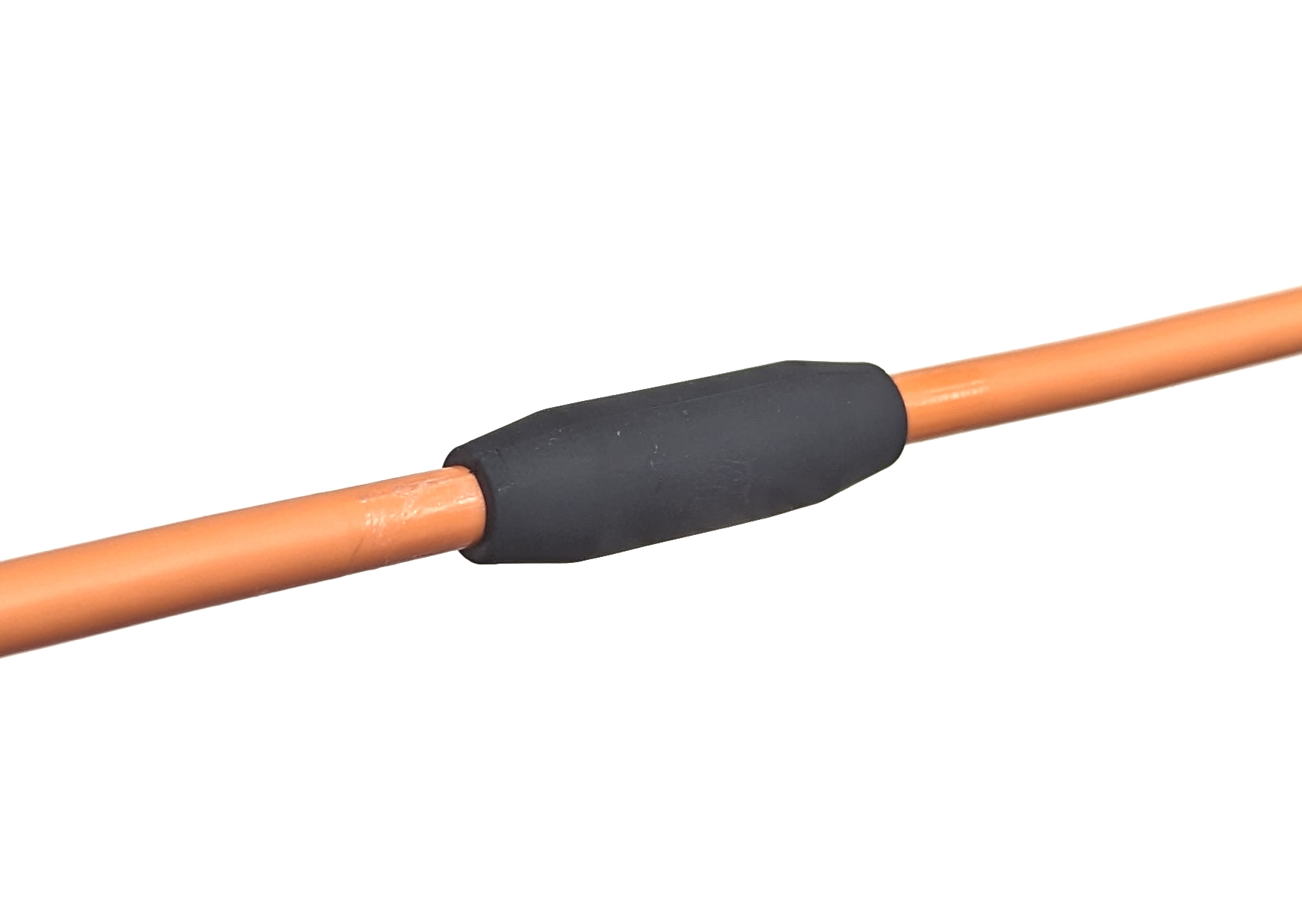

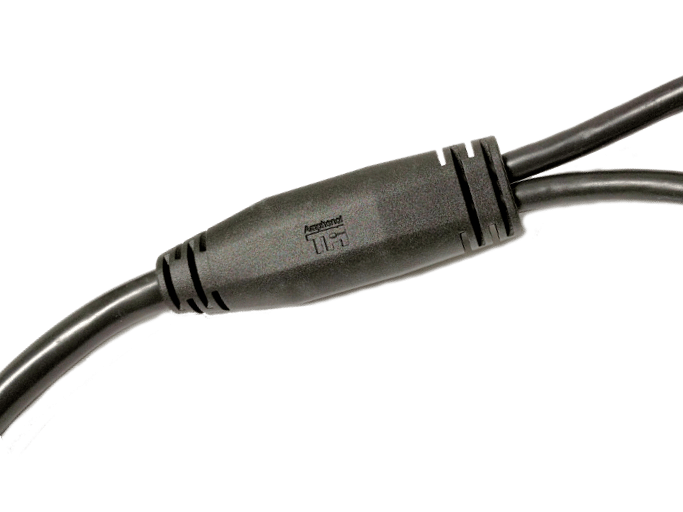

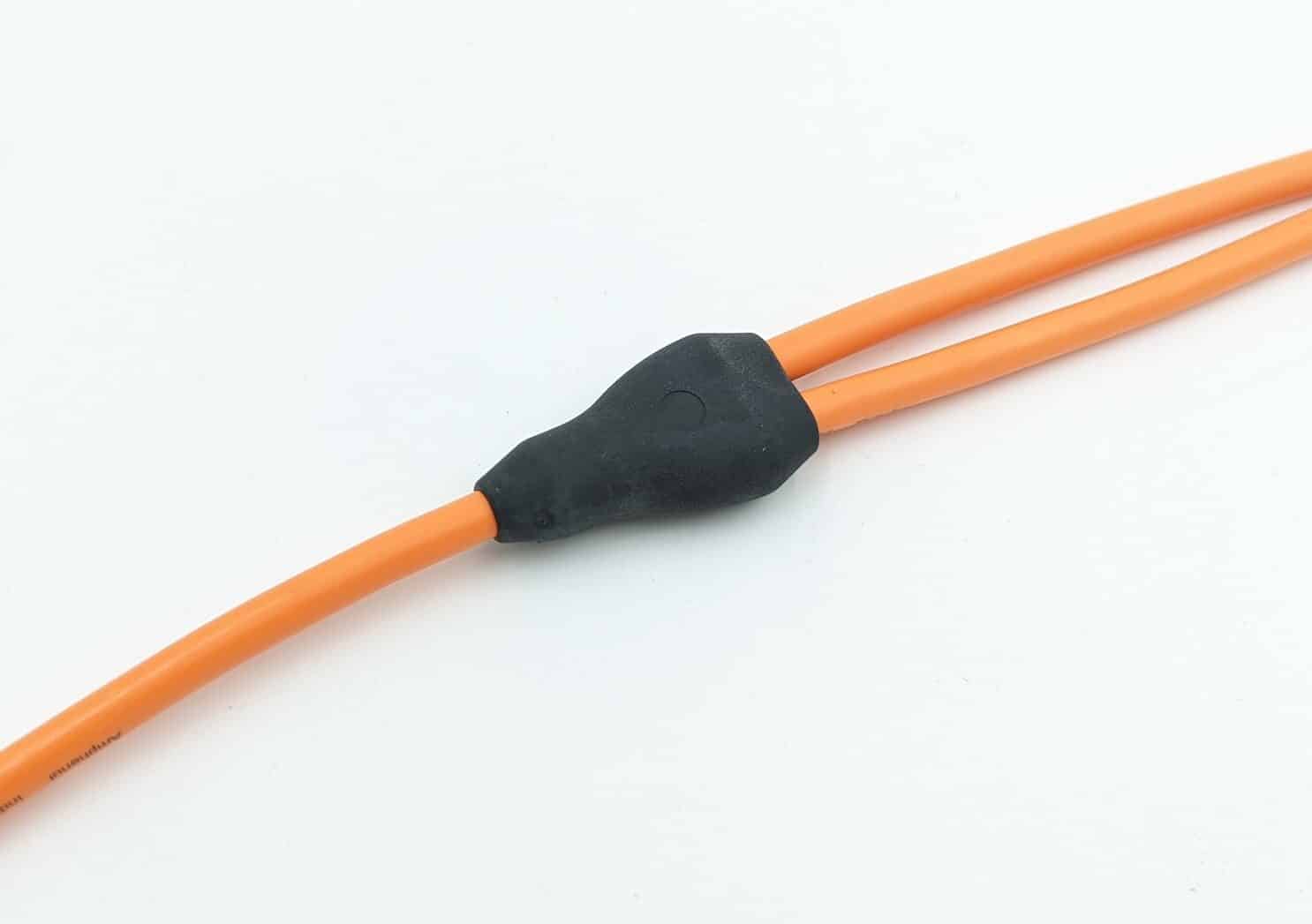

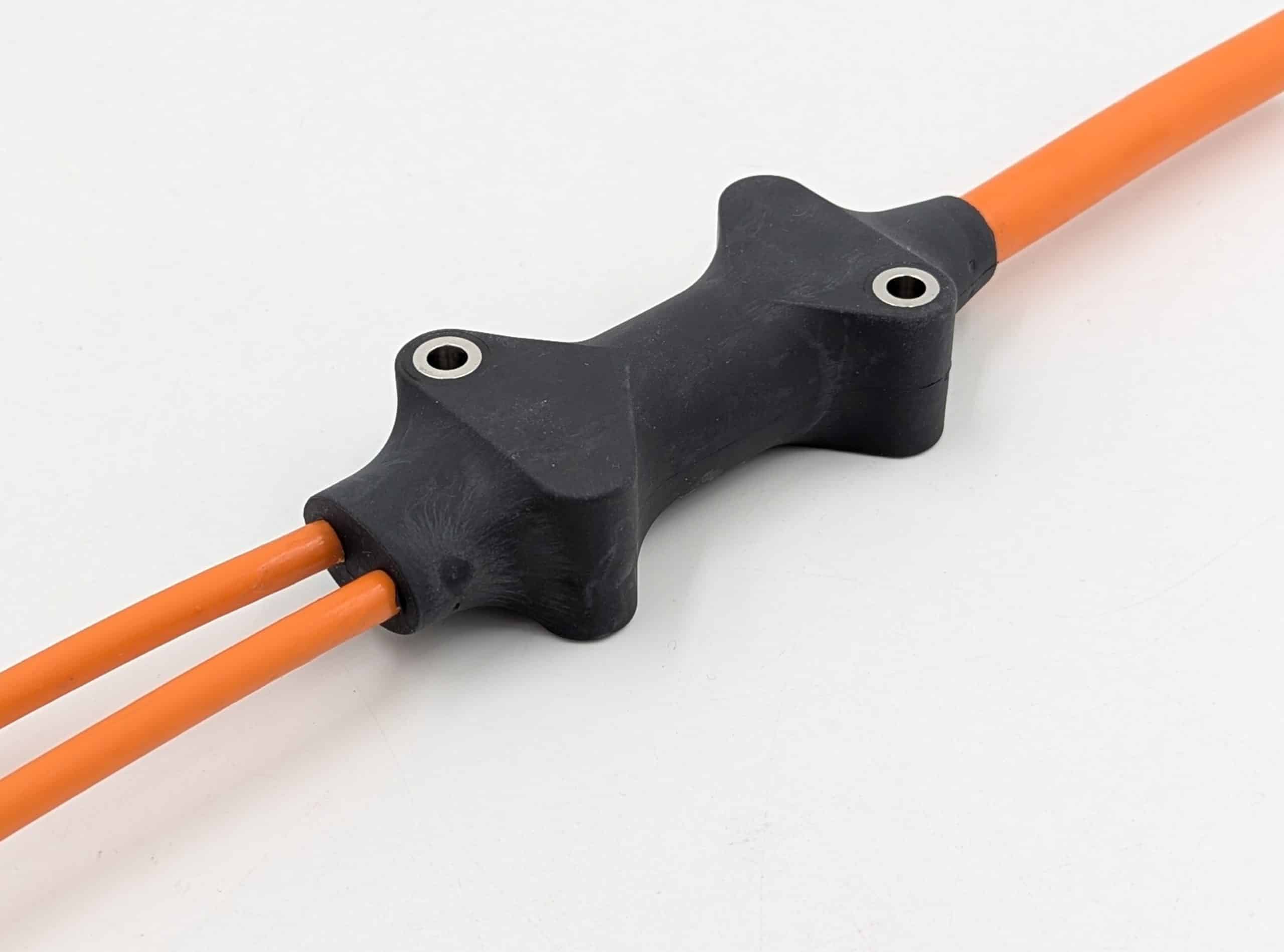

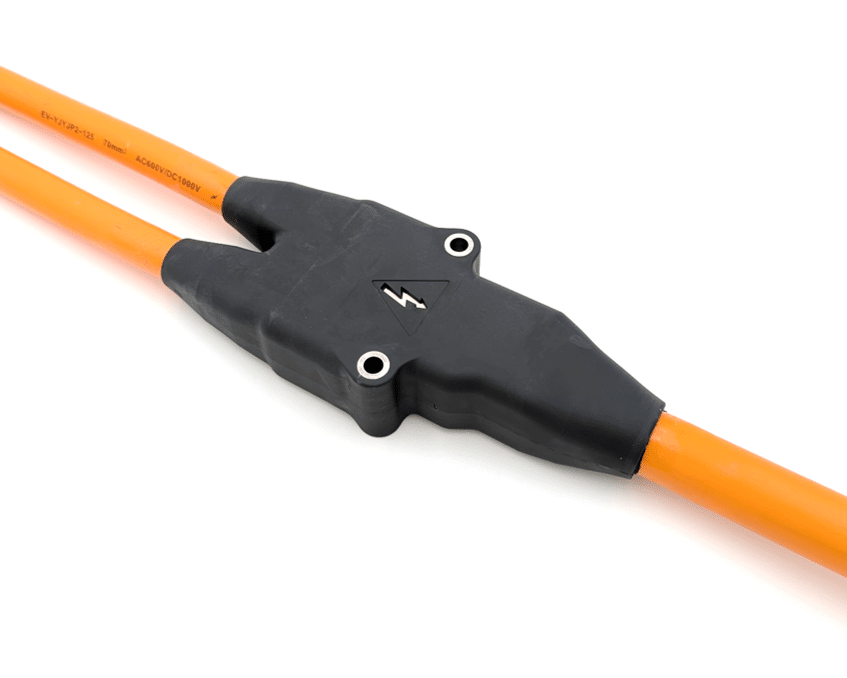

- Splice layout options: 1:1, 2:1, 3:1, 4:1, and more (please contact for custom layouts)

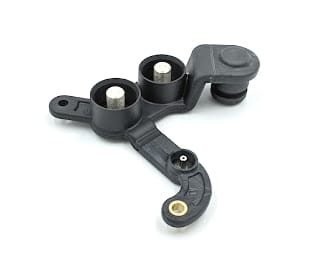

- Integrated securement (bushings, studs, etc.) for durability and routing requirements
Specifications
- Voltagelow and high voltage: 5VDC thru 1500VDC typical (operating), options for 2kV+
- Current10 to 800+ Amps Continuous, 2.5mm2 up to 185mm2
- Operating Temperaturestandard options for ranges from -50C to +180C
- SealingIP67, IP68 (24hrs+) & IP6k9k typical
- TerminationUltrasonic weld, resistance welding and crimped terminations
- Integrated hardwareBrass, steel or stainless bushings & studs
- FlammabilityUL94 V0 & 5VA options
- UV ratingUL746 f1 options
