Description

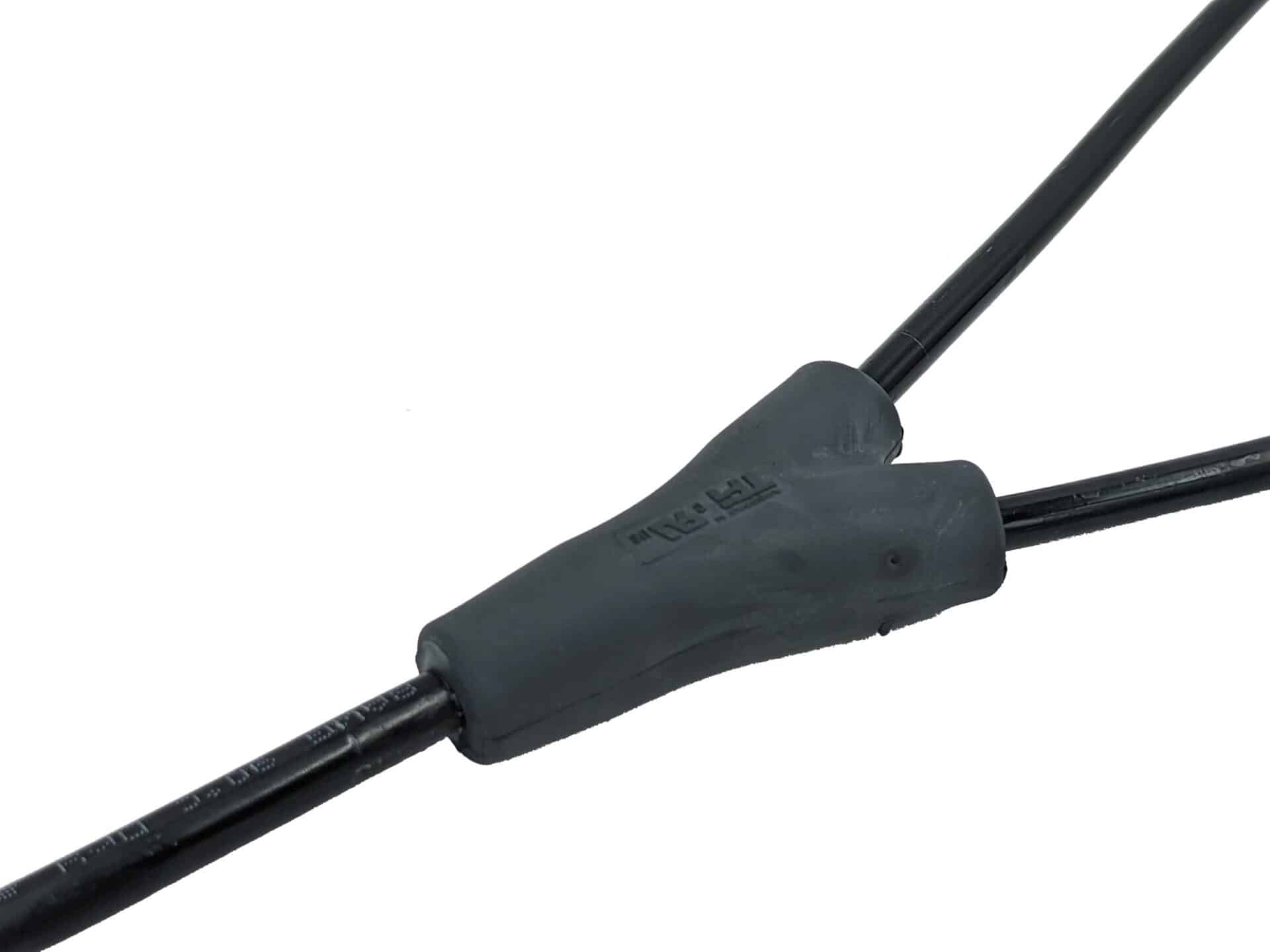

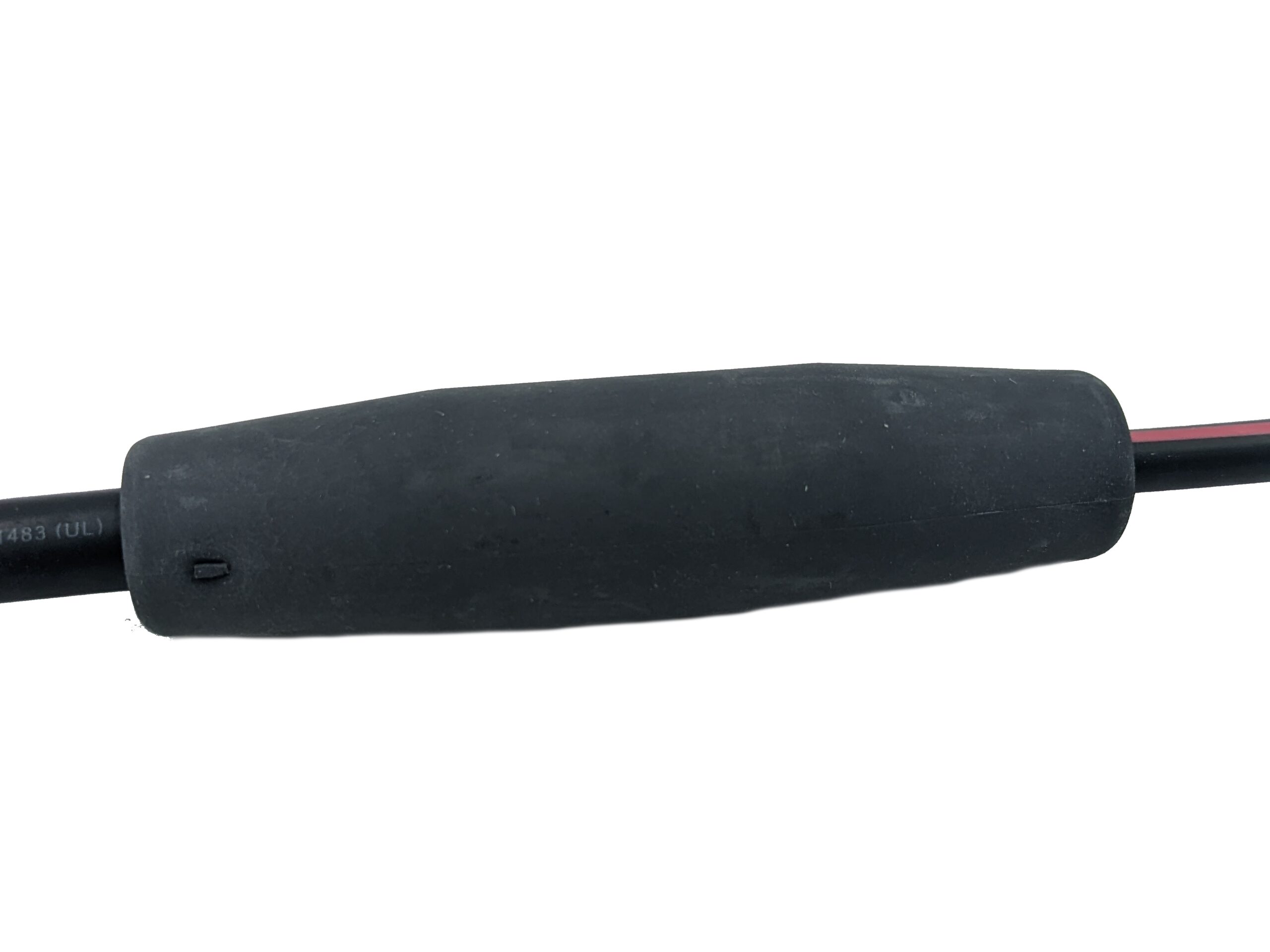

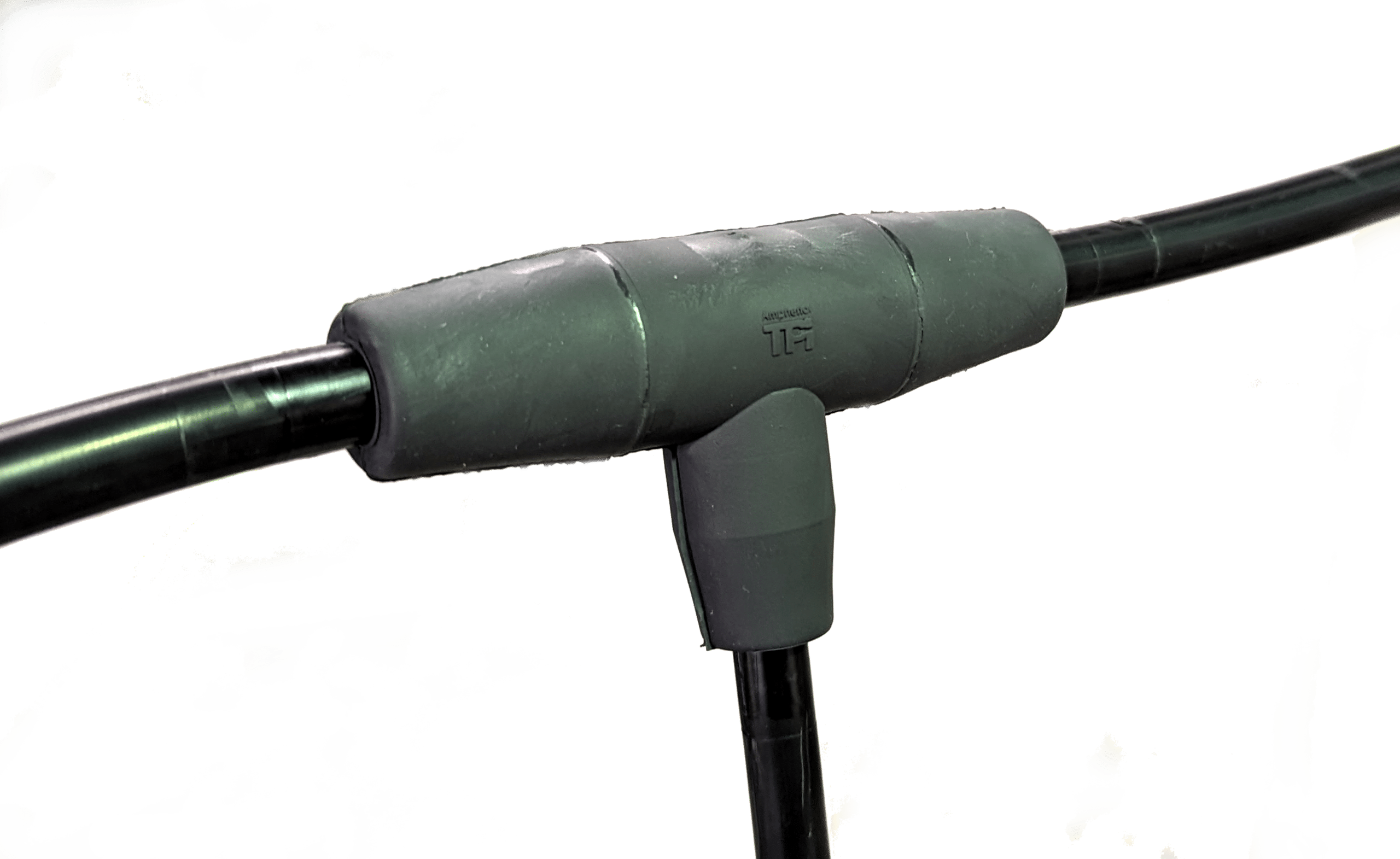

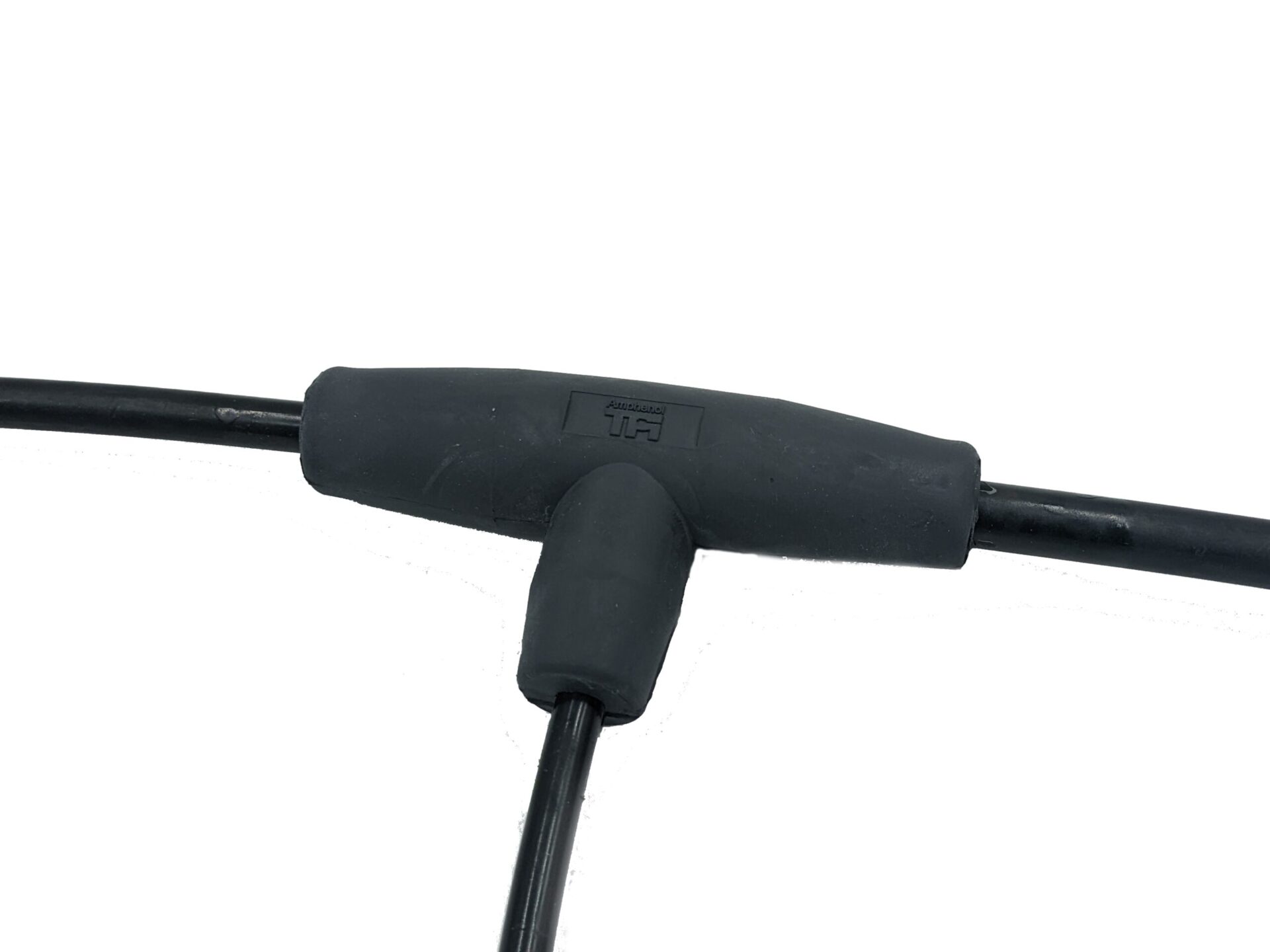

Amphenol Technical Products International (ATPI) offers products and solutions for Solar BOS (balance of system) DC power requirements. Products include UL listed string harnesses with various inline fuse and junctions using cable from 2 AWG to 14 AWG PV cable. ATPI understands the need for efficient (low loss) power transfer, highly reliable, and cost effective solutions that are required to be competitive in this industry. We can provide panel manufactures, installer, and OEM’s with connectivity products for both thin film and crystalline silicon technologies.

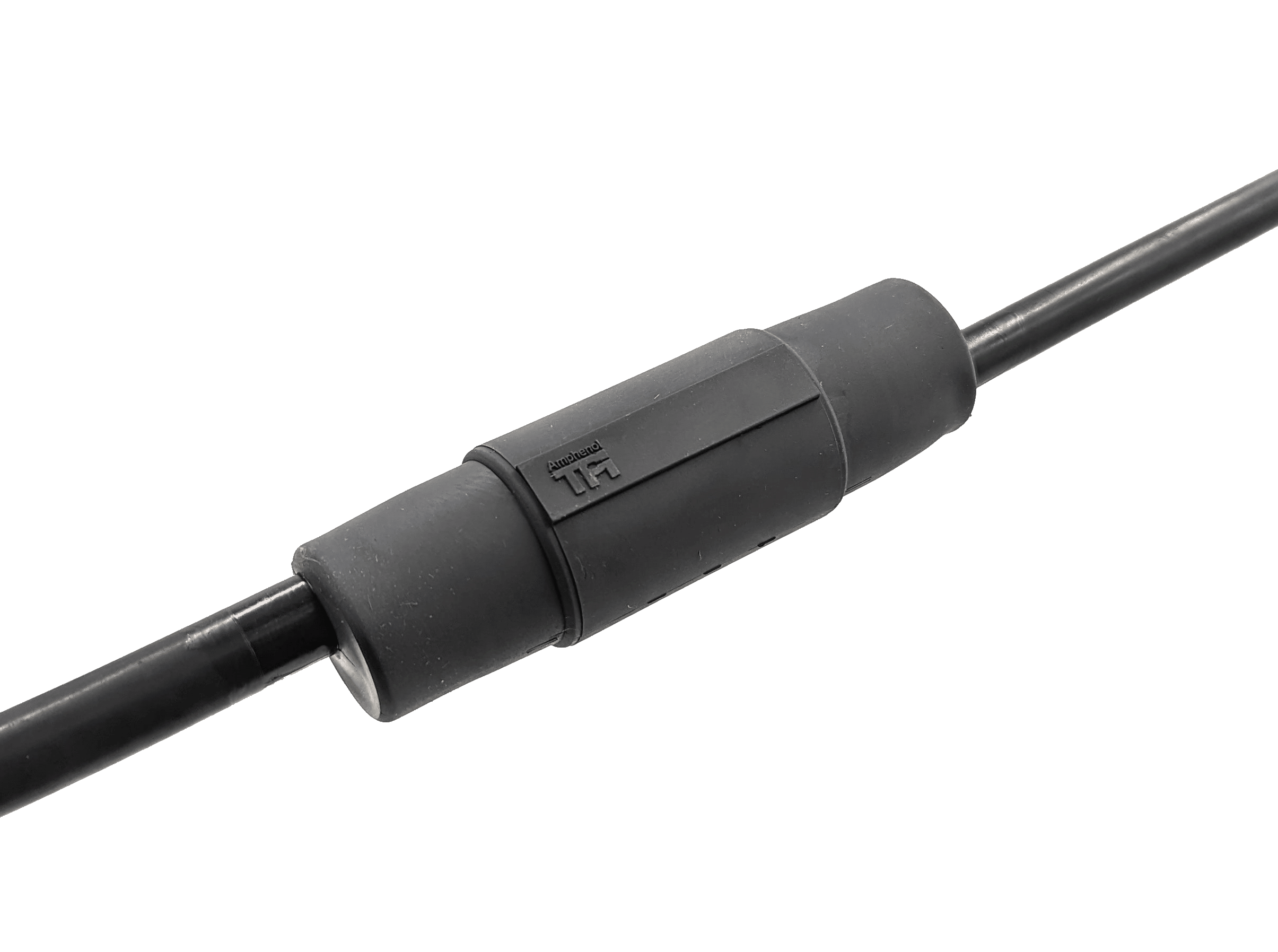

NEW: Aluminum-Copper Splices
Amphenol TPI’s Al-Cu Splice enables seamless integration of aluminum cable extensions between harnesses, modules, and combiner boxes. Utilizing aluminum cables significantly reduces overall costs compared to full copper extenders while maintaining current capacity and resistance. The Al-Cu Splice design ensures reliable, long-lasting connections, making it an ideal solution for cost-effective and efficient solar power installations. Enhanced with a
molded over-cable design for superior sealing, Al-Cu Splice ensures robust performance in various environmental conditions.
Features
- 1500V DC Current Rating - 2kV qualification in process
- 2AWG, 4AWG, 6AWG, 8AWG, 10AWG, 12AWG, 14AWG cable options for 1500V
- Aluminum - Copper Splices: Low cost extensions / extenders

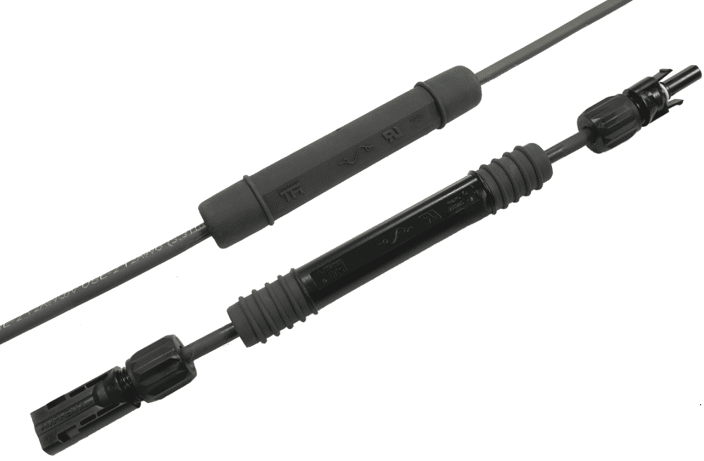

- High Current Fuses - now up to 65A
- IP68 ingress protection: 1000+ hour performance
- Bonded overmold to cable jacket - superior long term ageing sealing performance - eliminates potential failure modes due to cable jacket pull back
- Long term UV resistance
- Ready for field assembly: Coiled for easy installation, Multiple packaging options
- UL9703 listed & UL6703 approved
- Production serialization and testing traceability, from assembly to kitting/packaging
Specifications
- DC Current Rating1500V (600V & 1000V Compatible), 2kV qualification in process
- Fuse Ratings4A up to 65A
- Junction Current Ratingup to 95A (contact for cable / ambient temp specifications)
- Aluminum - Copper Splices2AWG thru 6 AWG Al with 12AWG thru 6AWG Cu
- Connector OptionsH4/MC4/EVO2/H4 PLUS/PV4-S1 and more (contact us)
- Cable Size Options2AWG, 4AWG, 6AWG, 8AWG, 10AWG, 12AWG, 14 AWG
- Ingress Protection DegreeIP68 (1m Water/24hours) minimum, Testing up to 1000 hours
- Ambient Temperature Range-40°C to 50°C
- Material SafetyRoHS Compliant
- Flammability ClassificationsUL94-V0 / 5VA
- Outdoor SuitabilityUV Resistance, F1 Rated
- ApprovalsUL6703; UL4248-1; UL4248-18 Recognized UL9703 Listed; Intertek ETL; CSA
