    Description

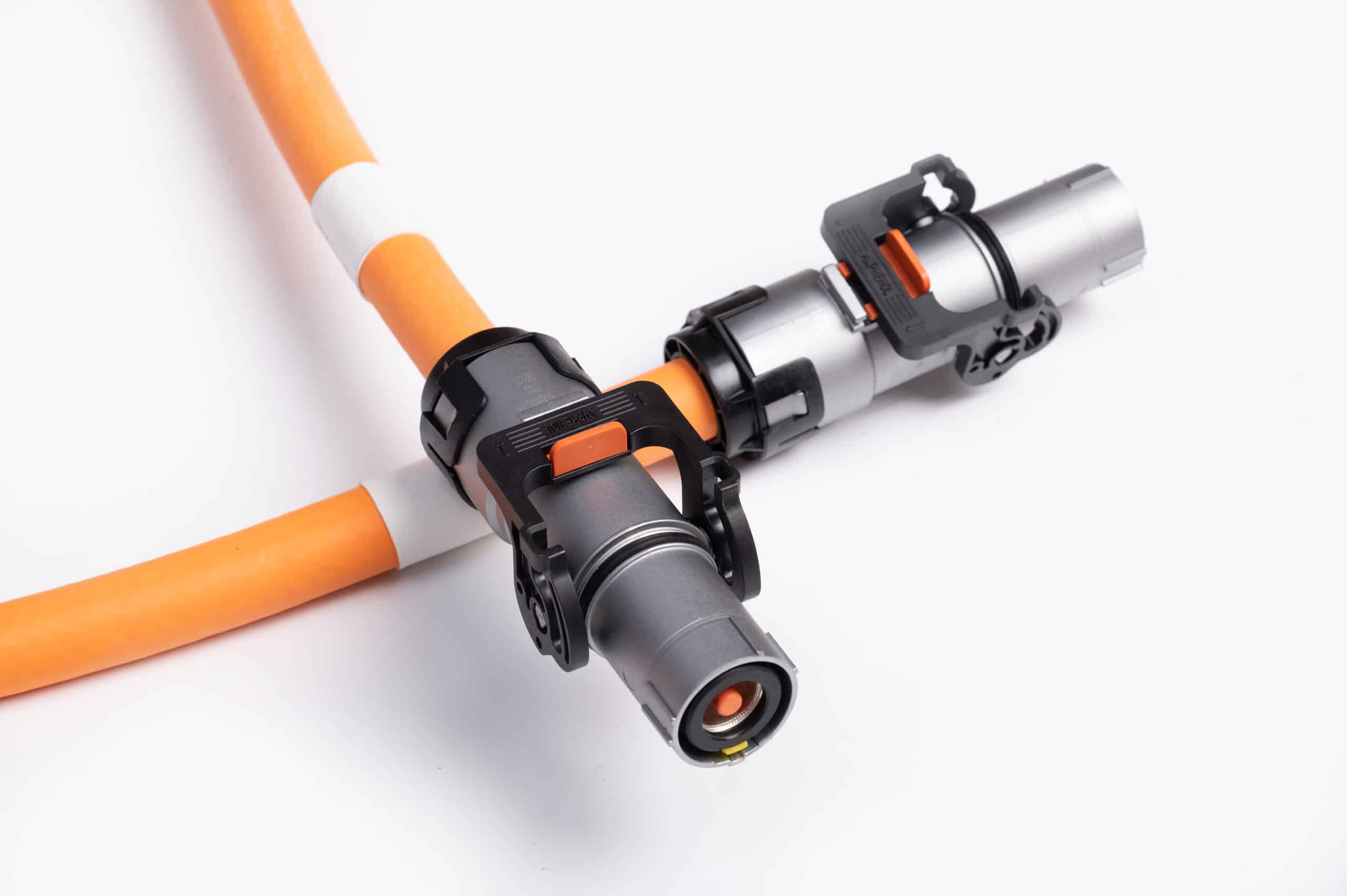

    PowerLok G2 is a high performance, compact, aluminum alloy interconnect solution utilizing RADSOK® contact technology for EV and Hybrid transportation applications.  G2 provides electrical ratings up to 1500VDC and 500A (Continuous @ 80°C Ambient) with IP67/6K9K sealing, 360° shielding, 500 hr salt spray, multiple keying options, straight and right-angle configurations, and up to 3 positions.  G2 is available as field assembled connectors which accommodate shielding cable sizes from 35mm² to 120mm² (300/500 Series) and 2.5mm² to 10mm² (60 Series).  PowerLok G2 connectors are engineered for a diverse set of applications including electric power distribution (batteries, inverter, PDU, and motors) for automotive, truck, bus, agricultural, construction, and off-road vehicles.

    Features

    1. NEW CONFIGS: 35mm2 & 95mm2 300 Series (1, 2, and 3 pole, straight and right angle)
    2. NEW RATING: 1500VDC All Configs | 300 and 500 Series
    3. Aluminum Shell, Gray Zinc Plating, 360° Shielding

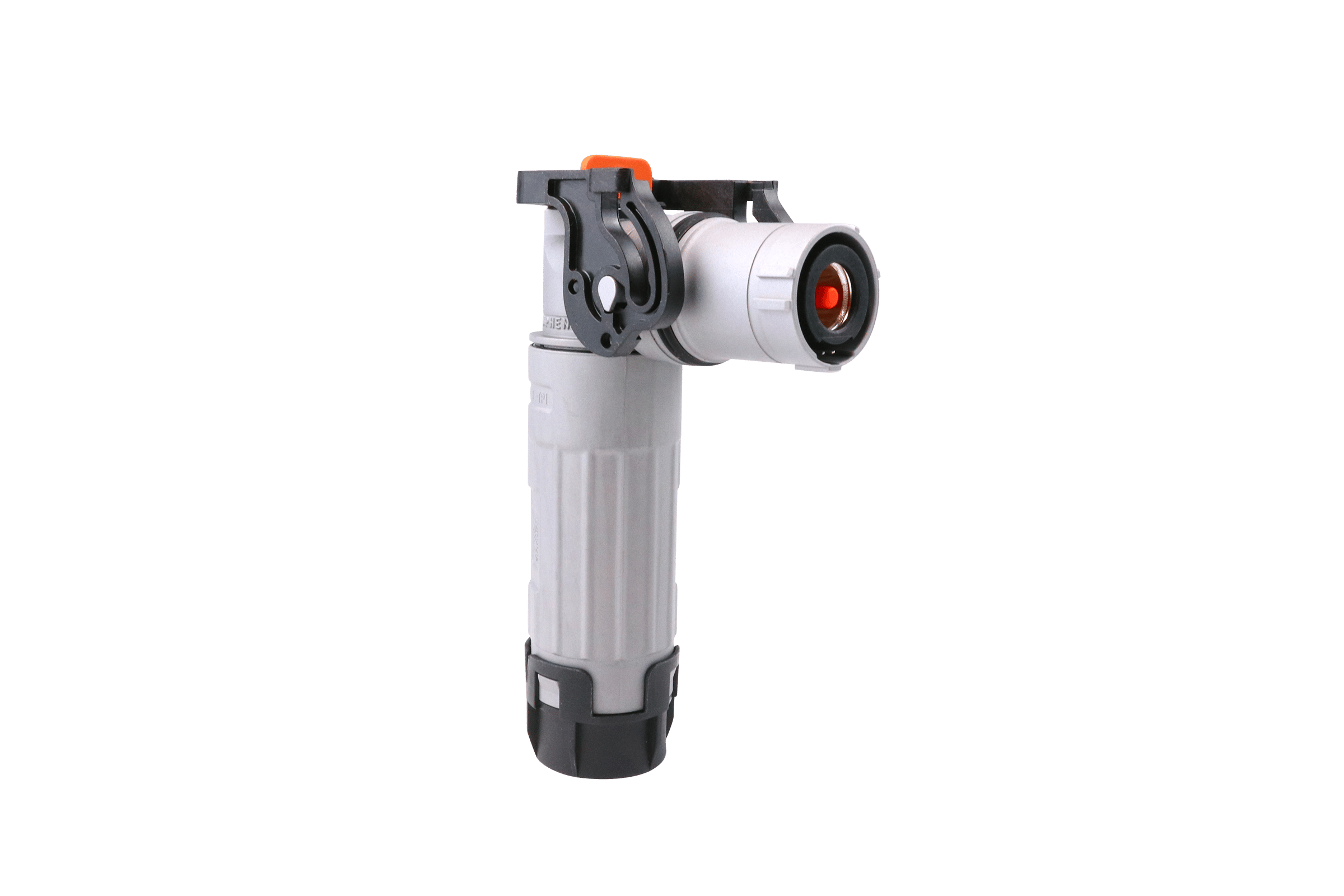

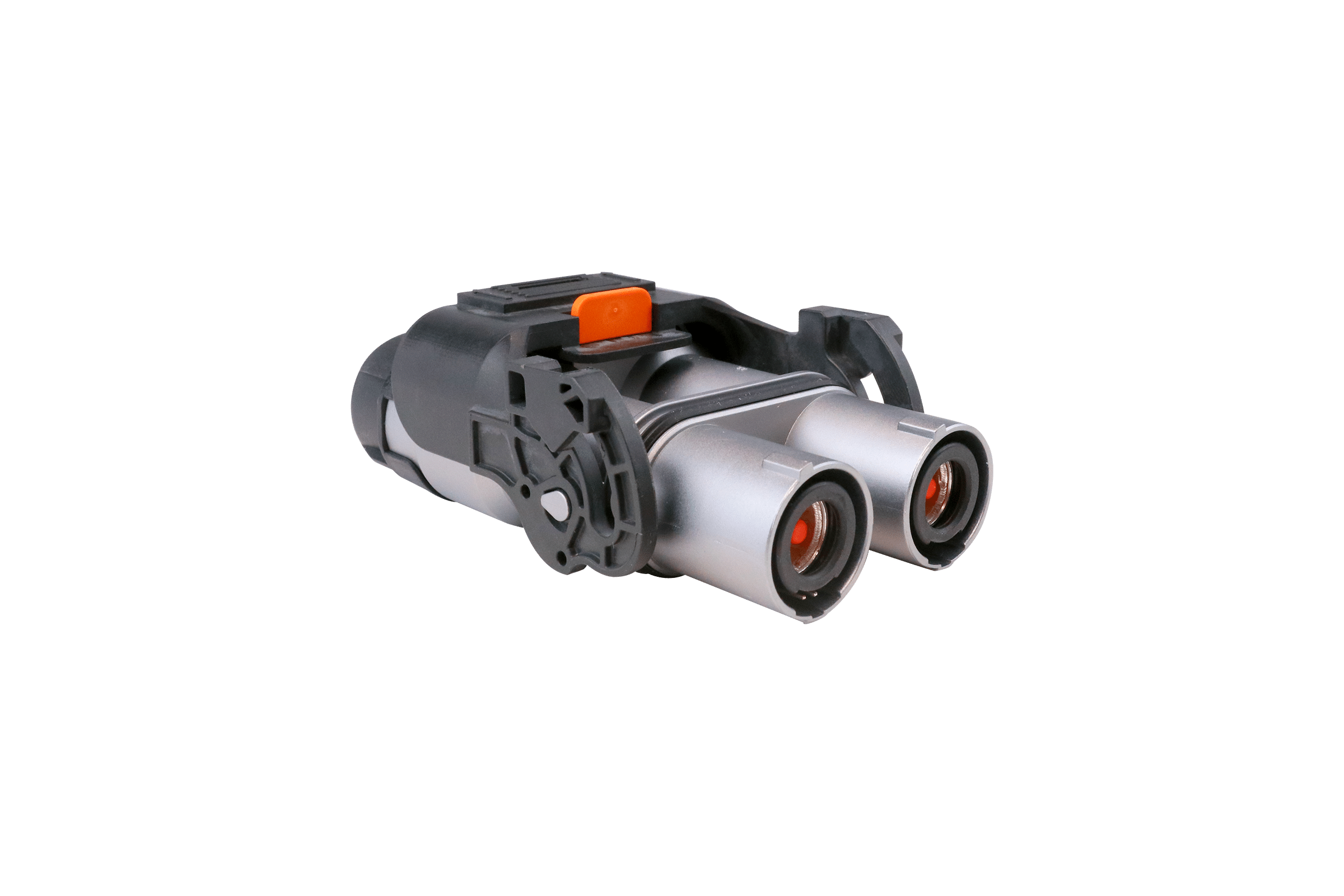

    4. 1POS, 2POS, and 3POS Positions Available, Straight and Right Angle
    5. 60 Series: 2 pos | 300 Series: 1, 2, 3 pos | 500 Series: 1 pos
    6. High Voltage Inter Lock (HVIL) & Multiple Keys: 1POS & 2 POS (X,Y,U,V,W,T keys) & 3POS (X,Y keys)
    7. Busbar, Threaded Stud, Pin, Punch Nut, and Custom Lug options for Receptacles
    8. RADSOK contact technology
    9. RoHS/Reach compliant
    10. Updated design, improved HVIL, Vibe, and Shielding performance

    Specifications

    1. Mating Cycle
      100 Min
    2. Current Rating
      25A-500A Nominal (refer to derating curves)
    3. Operating Voltage
      1500VDC (300/500 Series), 1000VDC (60 Series)
    4. Environmental
      IP67 & IP6K9K (IP2X when mated)
    5. Insulation Resistance
      500MΩ min
    6. Temperature Range
      -40℃ to +125℃ (w/ 140℃ RTI Insulators)
    7. Flammability
      UL94 V-0
    8. Salt Spray
      500h (contact for custom options)
