USCM Series – Power & Signal Connectors – Dual Latch

View Catalog
___________
Technical Documents
  • Gallery Image

  • Gallery Image

  • Gallery Image

  • Gallery Image

  • Gallery Image

  • Gallery Image

    Description

    USCM (Ultra Sealed Connector, Multiple poles) is a high performance sealed connector series to meet outdoor long-term use in harsh environment conditions; providing users a highly reliable electrical interconnection solution. USCM delivers the highest standard of electrical and mechanical performance ensuring heavy equipment, commercial, and off-road vehicles run safer and efficient with more reliability.  USCM provides greater performance in sealing and vibration while increasing safety for new low voltage systems up to 250V DC.

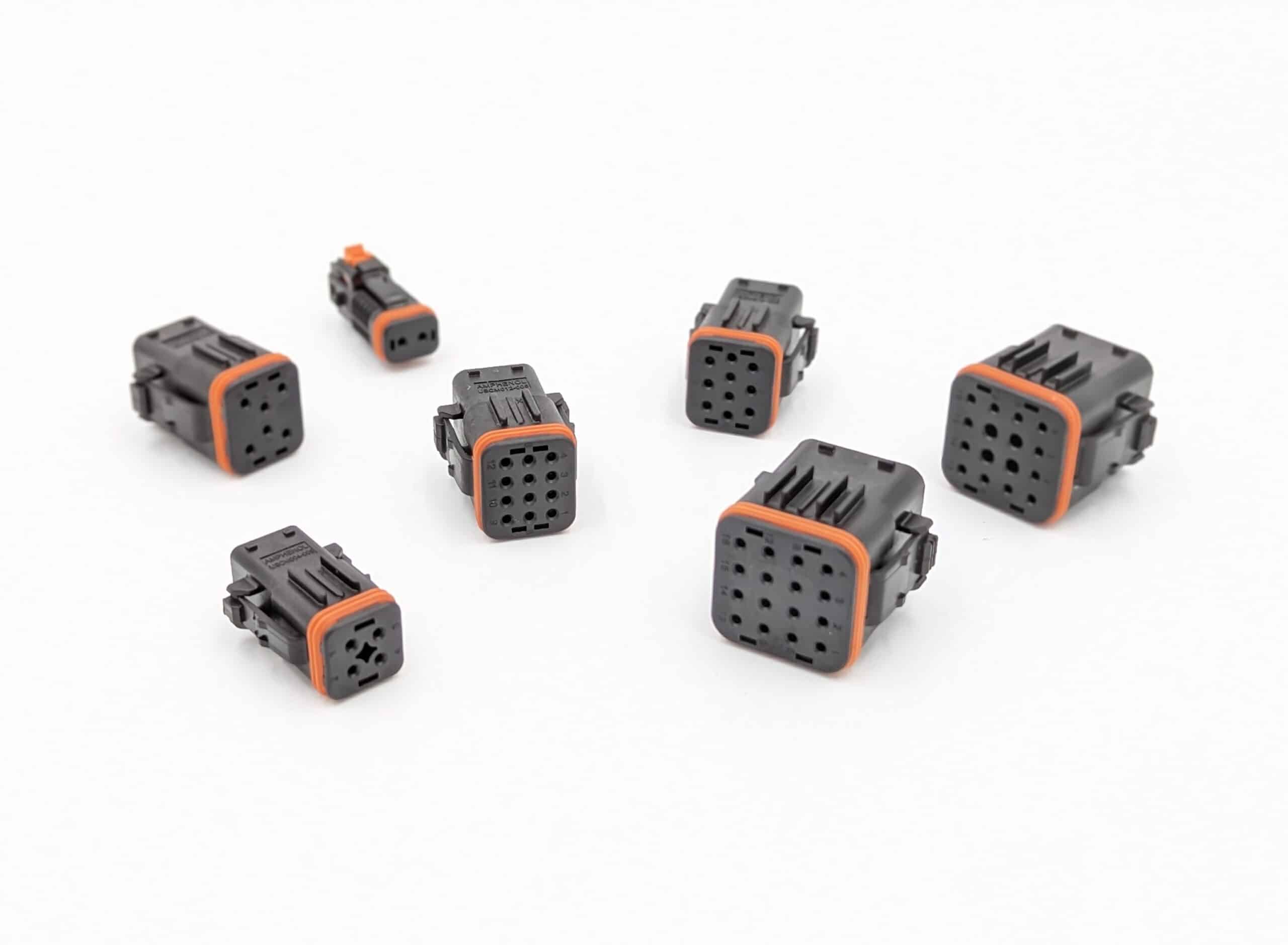

    The USCM line is available in several pin out arrangements starting from a 2 pole and going up to a 25 pole.  Designed for #12 and #16 size contacts to accommodate wires from 12 – 16 awg (size 12) and 14-22 awg (size 16) wire.  Housings are available in four keys and color codes.

    Features

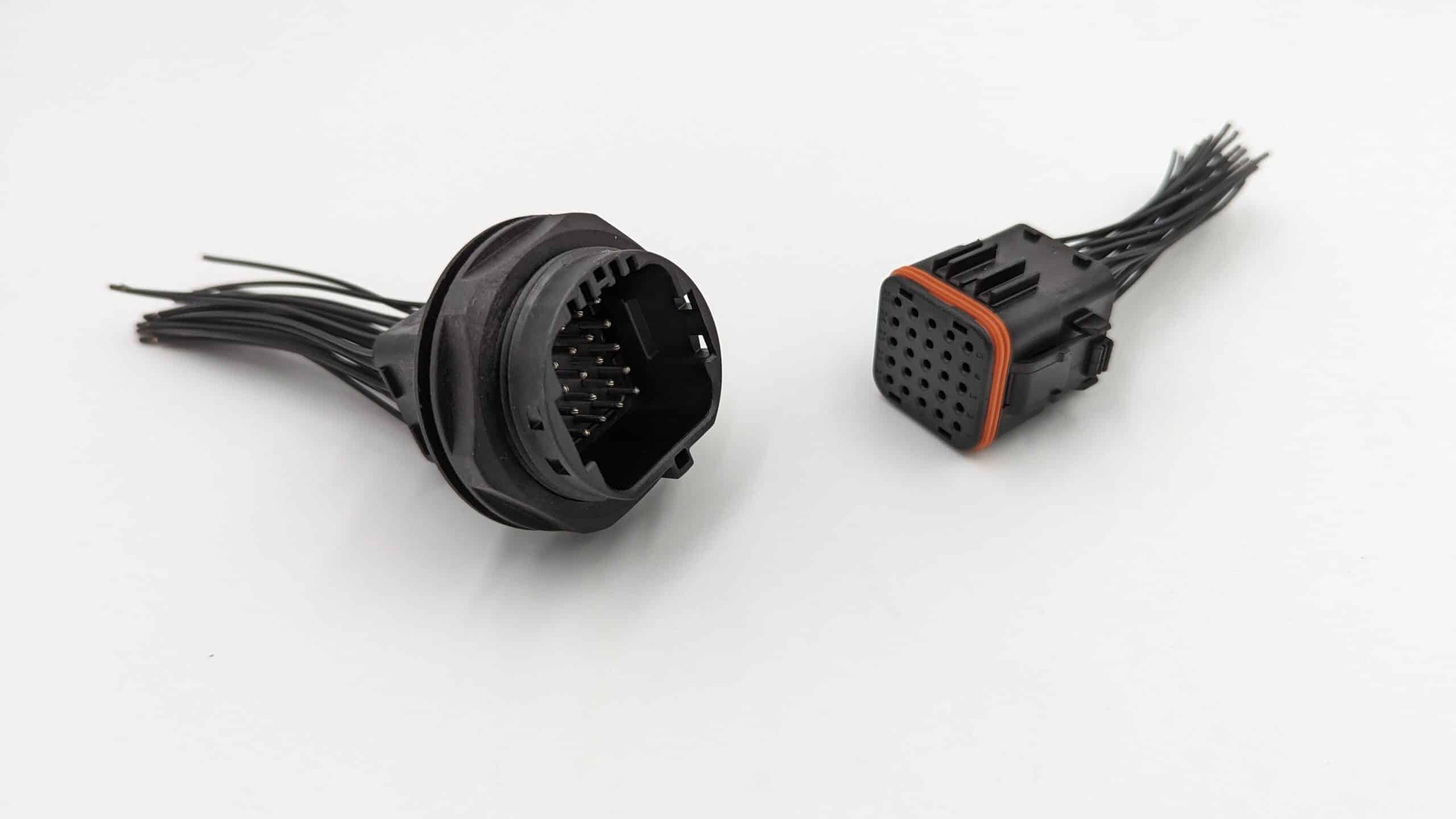

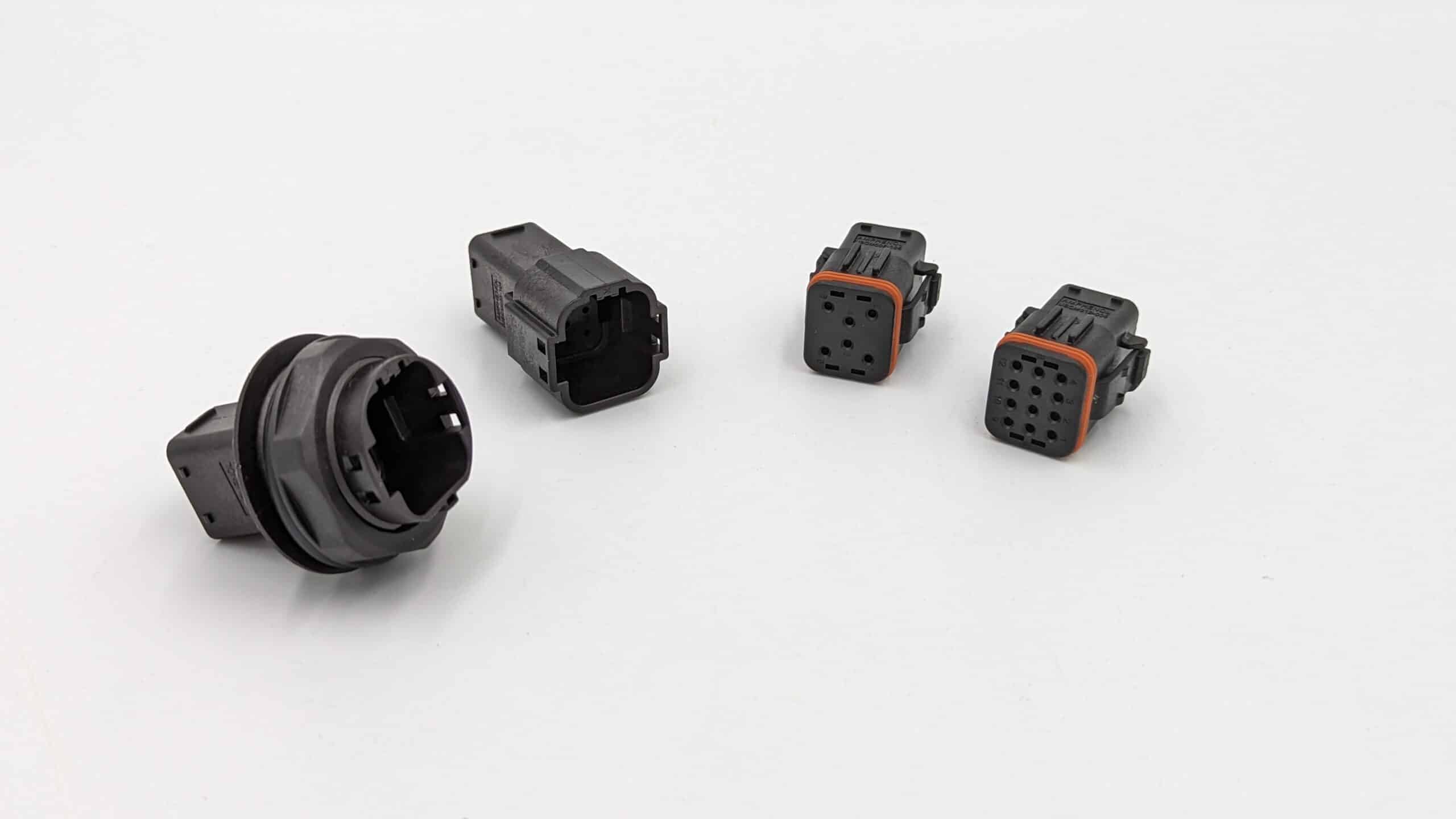

    1. Jam nut and inline cable to cable housings
    2. Dual Latch on 4-25 position | Single Latch with Secondary lock on 2 position
    3. IP6K9K, IP68 (1m @ 24 hours) & Air Leak (48kPa)
    4. Four Mechanical Keys | Four Housing Colors
    5. Internal damper grommet for high vibration performance
    6. Thermoplastic housings and shells
    7. Individual wire sealing plugs
    8. Accessory hardware and clips available

    Specifications

    1. Pin count
      2, 4, 6, 8, 10, 12, 12+4, 16, and 25 positions (# Signal+ #Power)
    2. Current rating
      30A (size 12) and 13A (size 16)
    3. Cable Size
      12-14AWG (Size 12), 14-22AWG (Size 16)
    4. Dielectric withstanding voltage
      3000VDC
    5. Operating Temperature
      -55℃~+125℃
    6. Protection Class
      IP6K9K, IP68 (1m @ 24 hours) & Air Leak (48kPa)
    7. Mating Cycle
      200 MIN
    8. Vibration Class
      SAE J2030 & GB/T 28046.3
    9. Fire classification
      UL94-V0
    Download Datasheet
