    Description

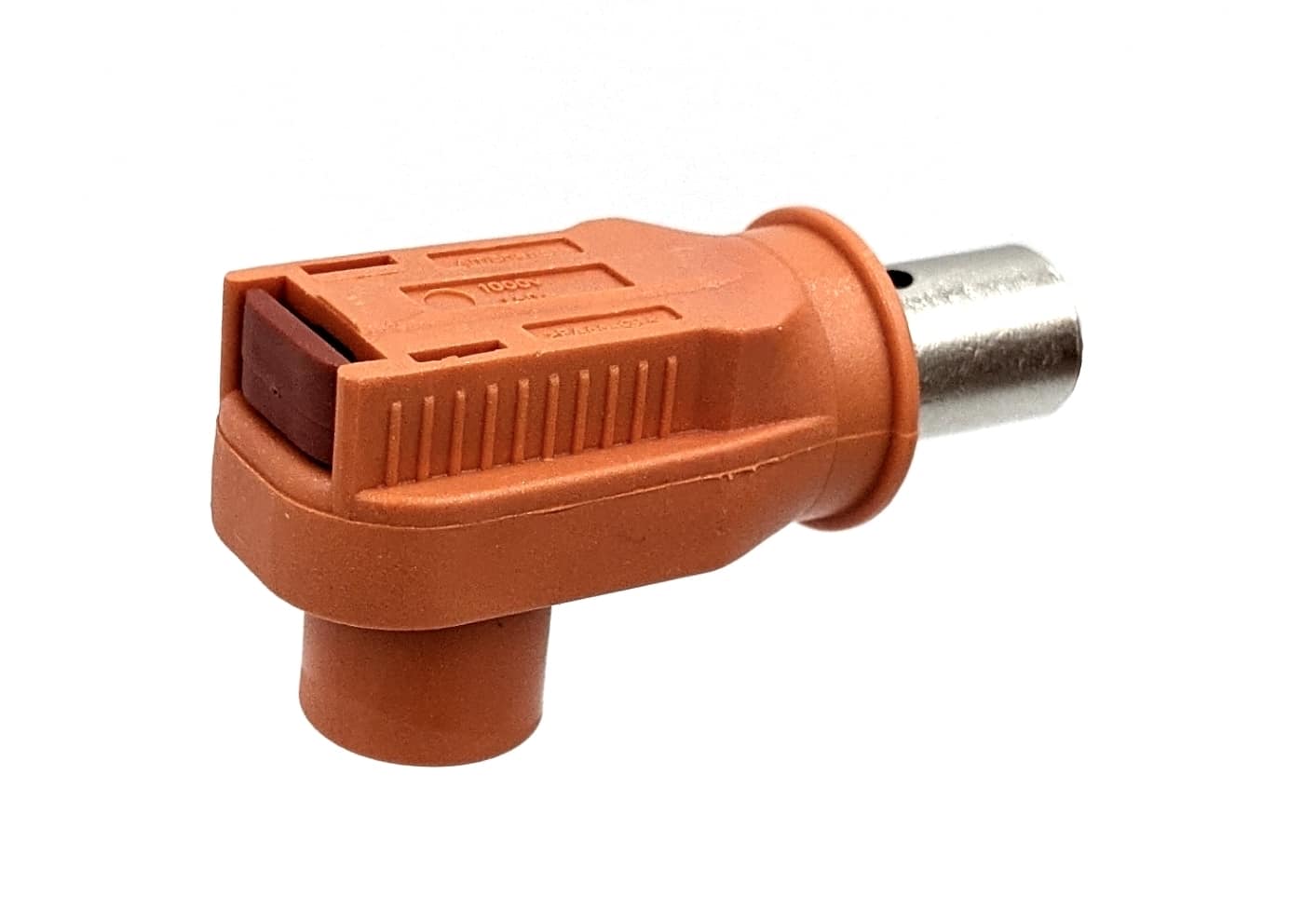

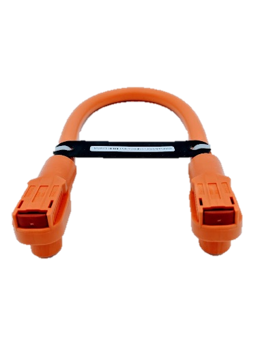

    RADLOK™ is a 1000V low cost tool free power interconnect utilizing RADSOK contact technology available with current ratings from 70A to 500A. RADLOK™ is designed for energy storage, battery and device power interconnects. RADLOK’s quick connect and single finger press to release lock function replaces tools and handware assiciated with standard lug terminals in their assembly and maintenance. Mating pins and receptacles available for bus bar and panel mount configurations with lug, thread, or mating RADLOK™ pin terminations. Available in orange, red and black as discrete or as molded cable assemblies.

    Features

    1. Quick Connect - Tool-Free Mechanical Locking
    2. Available in black, red, orange(contact us for customized color)
    3. Available in 3.6mm, 5.7mm, 8.0mm, 10.0mm, 12.0mm, 14.0mm pin size
    4. REACH and RoHS compliant

    Specifications

    1. Mating Cycle
      100 Min
    2. Current Rating
      70A - 500A Cont.
    3. Operating Voltage
      1000VDC
    4. Temperature Range
      -40℃ to +125℃
    5. Flammability
      UL94 V-0
