HC Series – Power & Signal Connector

View Catalog
___________
Technical Documents
  • Gallery Image

  • Gallery Image

  • Gallery Image

  • Gallery Image

  • Gallery Image

    Description

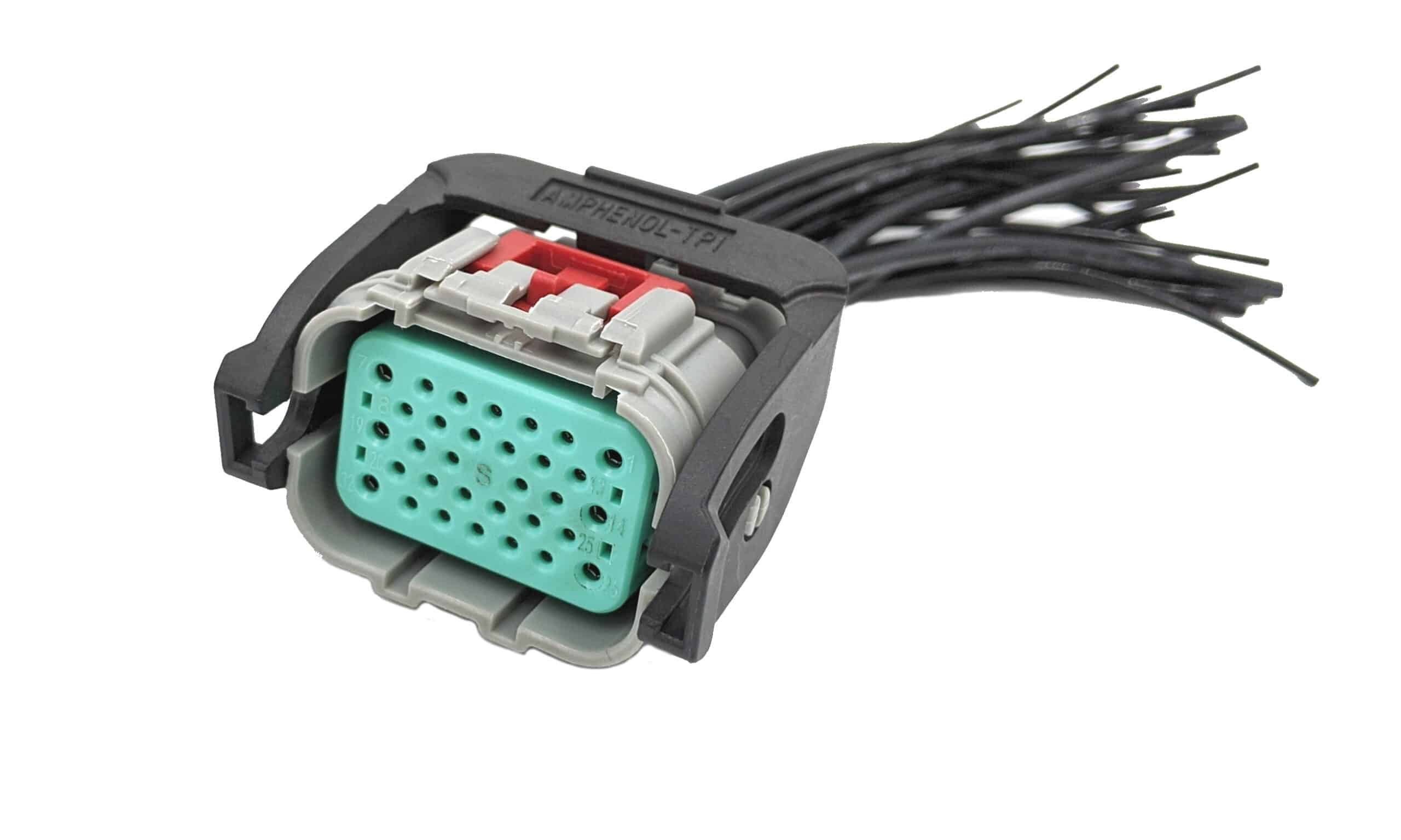

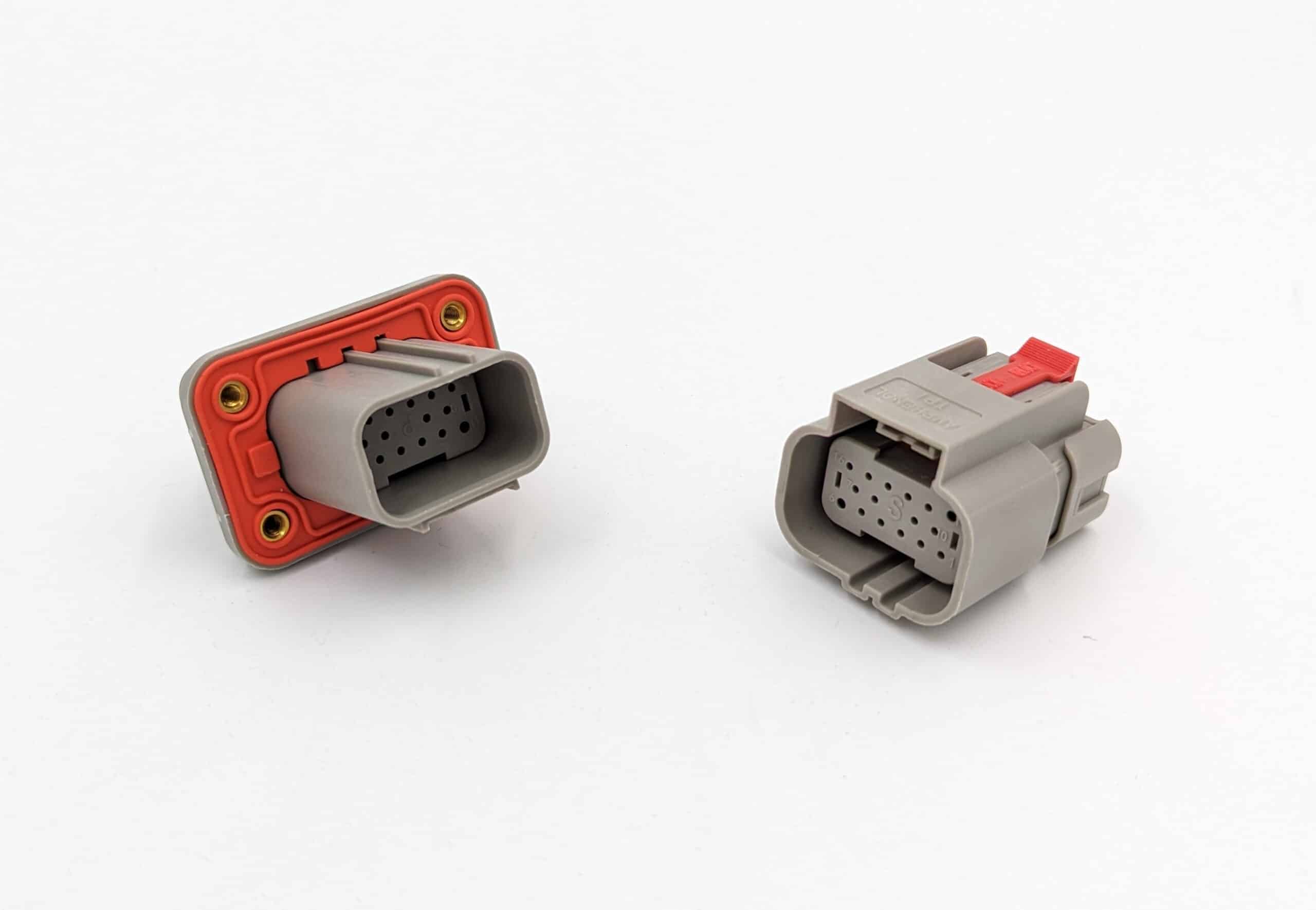

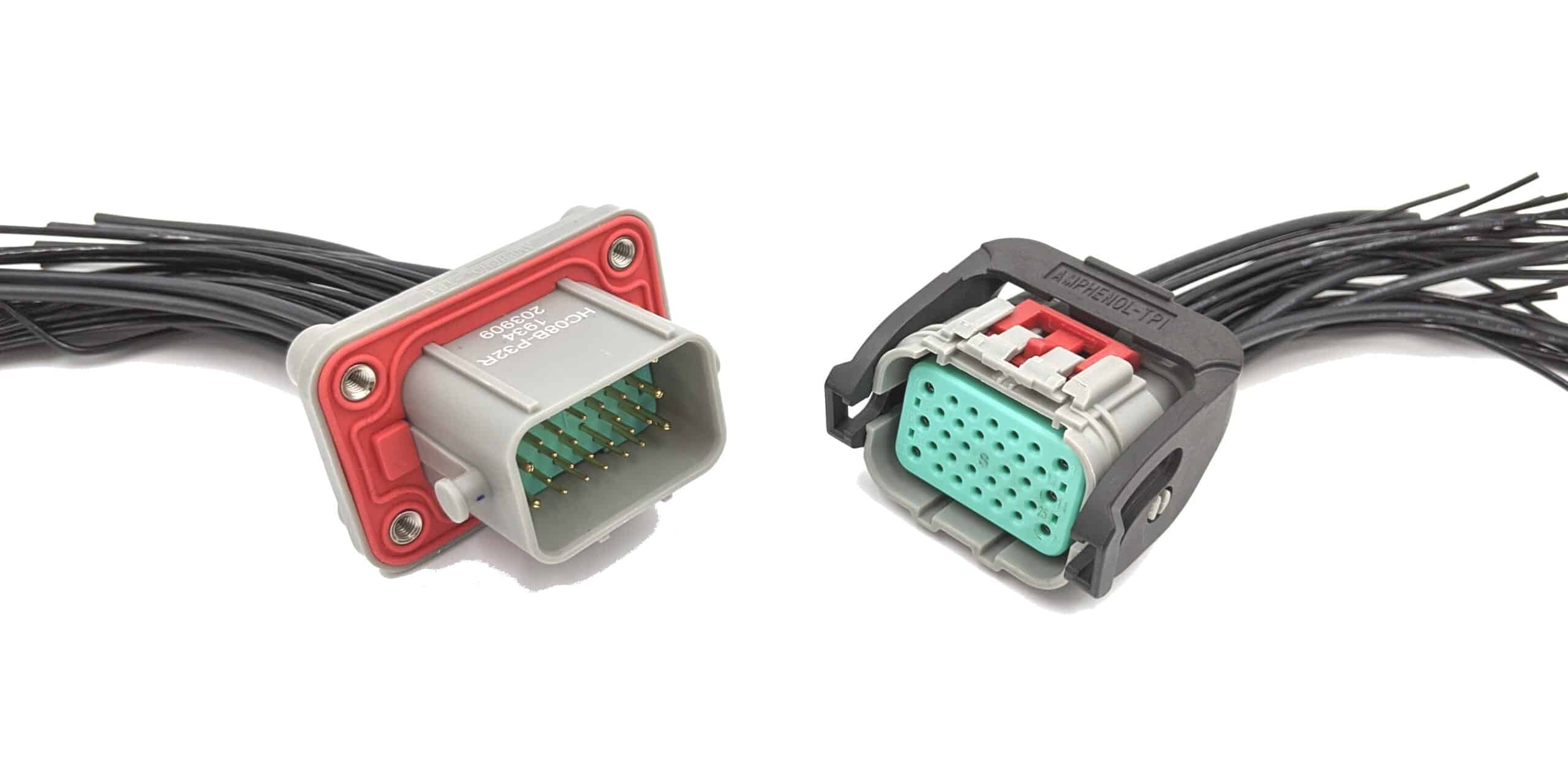

    HC Series connectors are designed as a high-performance, cost-effective solution for signal and power transmission from PDU’s and battery packs.  The connector has integrated both signal and power transmission in one compact housing.  32 pin version includes 6 power and 26 signal circuits.

    Features

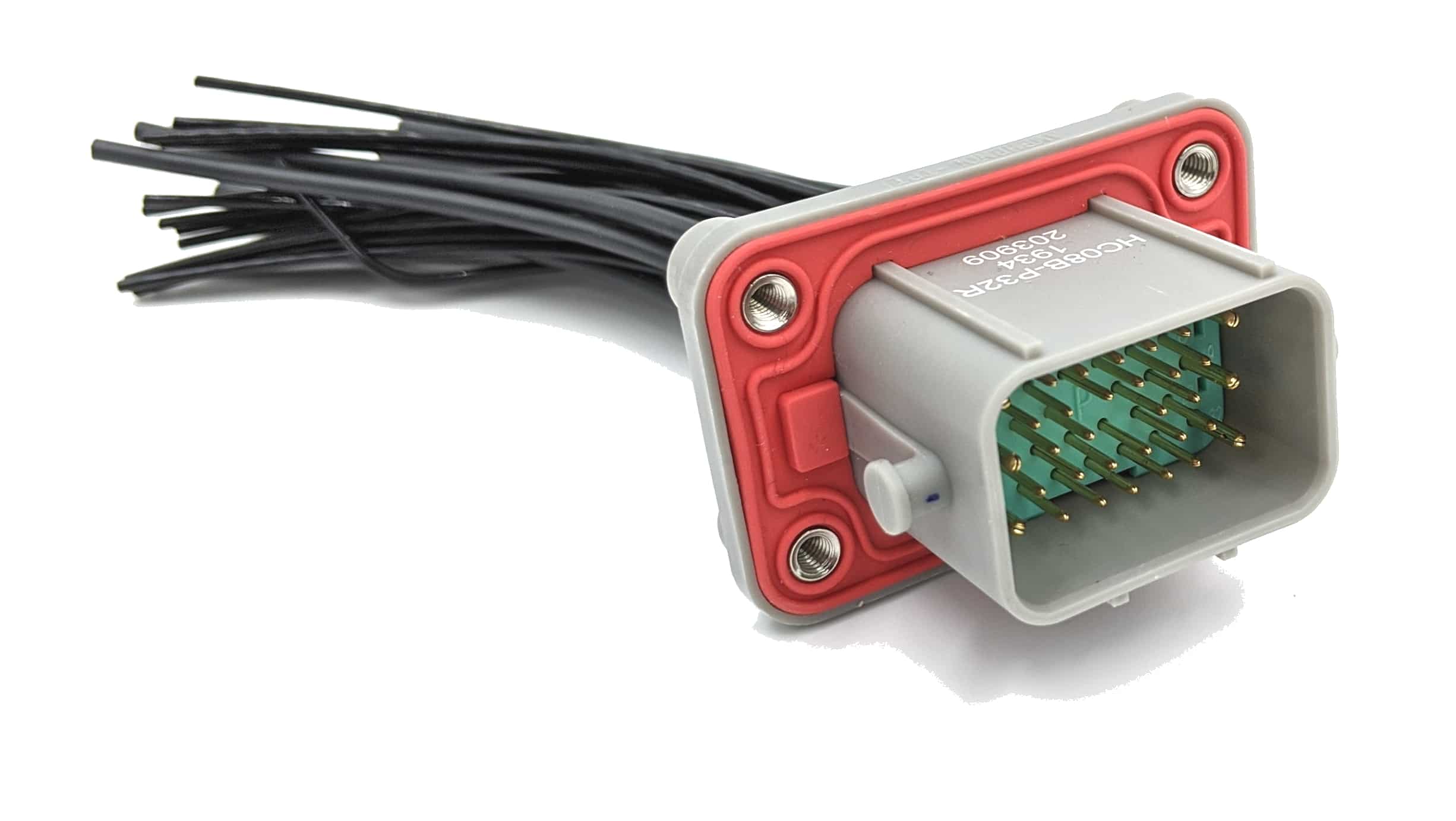

    1. Reverse mount receptacle
    2. Colored body and enhanced rib for ease of blind mating: Grey, Red, and Blue

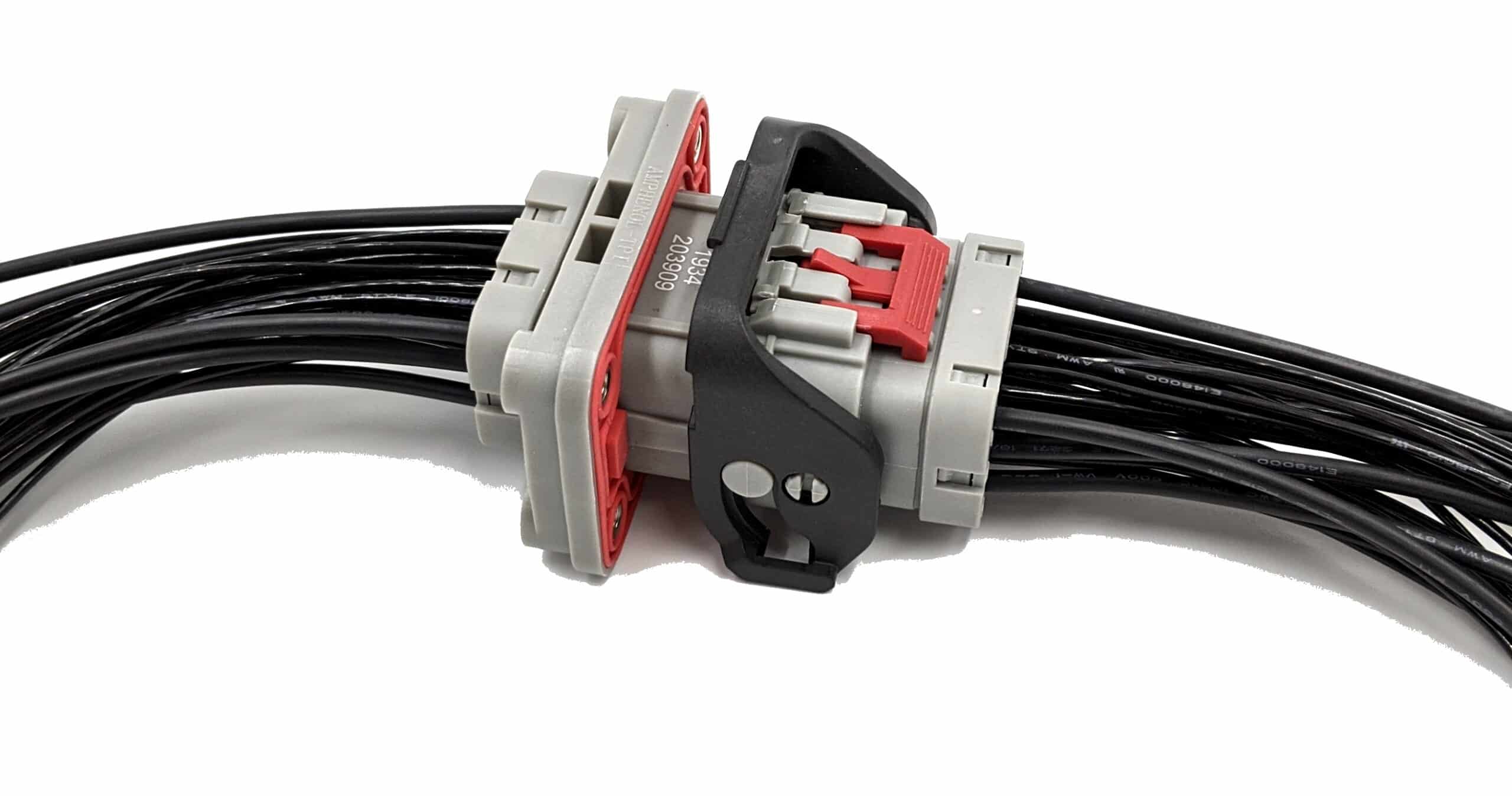

    3. Up to IP68 protection (mated)
    4. Scalable pin count per specific requirement
    5. Available with key A, B and C option with color coded body
    6. Available with CPA option

    Specifications

    1. Pin count
      32Pin: 6 Power, 26 Signal
    2. Current rating
      Power: 13A MAX, Signal: 5A MAX
    3. Cable Size
      Power: 14~18AWG, Signal: 20~22AWG
    4. Dielectric withstanding voltage
      3000VDC
    5. Operating Temperature
      -40℃~+125℃
    6. Protection Class
      IP6k9k & IP68 (mated)
    7. Mating Cycle
      100Min
    8. Fire classification
      UL94-V0
