Product Overview

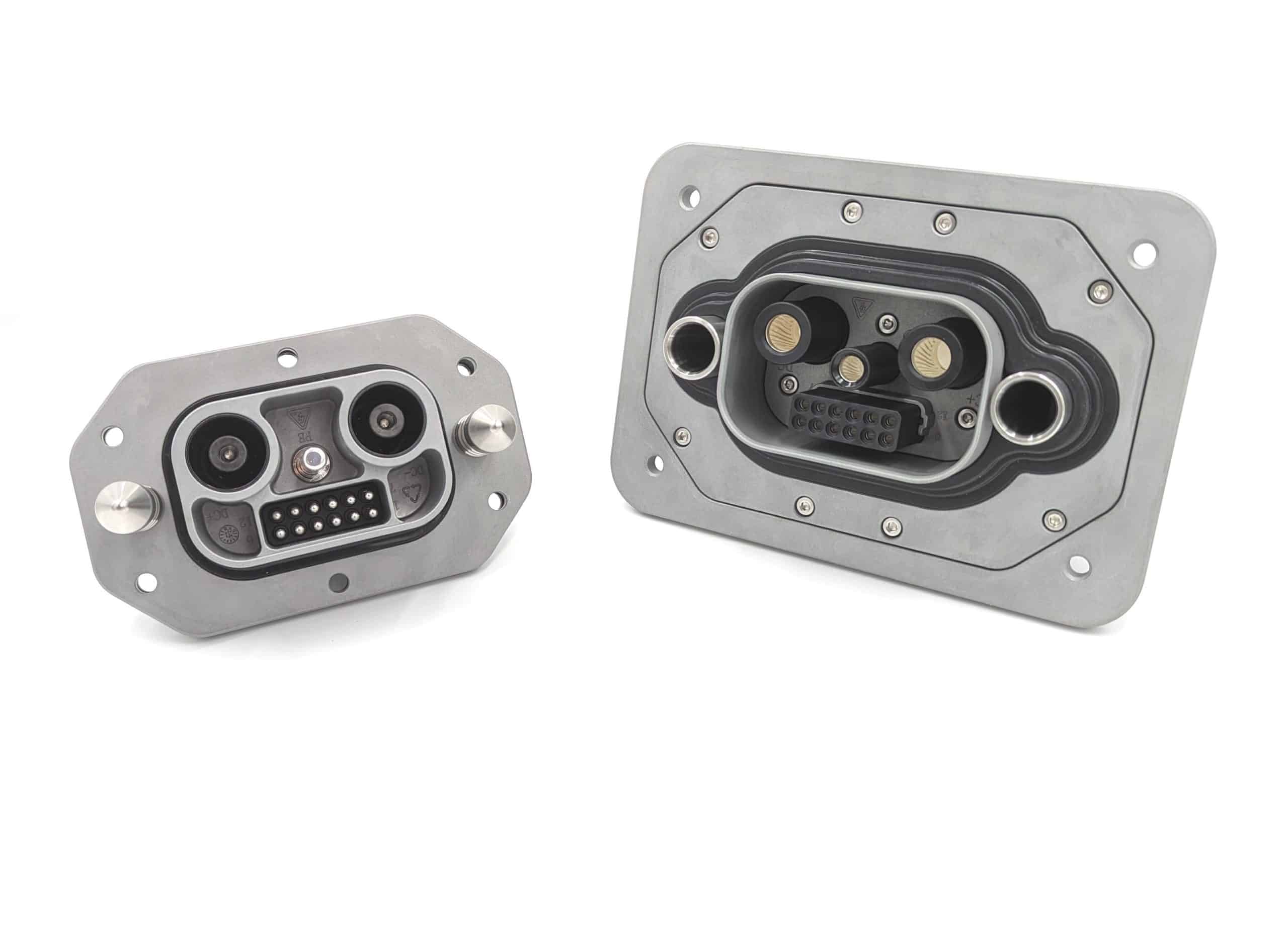

PowerLok FSC is a highly durable blind mate battery fast swap connection system focused on Heavy Equipment applications. PFSC provide grounding, signal and high current power contacts at 1000VDC for 10,000+ mating cycles.
Features
- High Strength Metal Shell
- Power: 2 Position
- Signal: 12 Position (HVIL Function)
- Grounding Pin
- Busbar or Cable Termination
- UL94 V0
- RoHS/Reach compliant
Specifications
- Blind Mate Travel+- 6mm X/Y, +0/-10mm Z
- Mating Cycle10,000 Mechanical, 3,000 Seals (replaceable)
- Current Ratingup to 300A on Power contacts
- Operating Voltage1000VDC
- EnvironmentalIP68 & IPx6K (IP2X when mated)
- Insulation Resistance500MΩ min
- Temperature Range-40℃ to +125℃
- FlammabilityUL94 V-0
- Salt Spray480h (contact for custom options)
