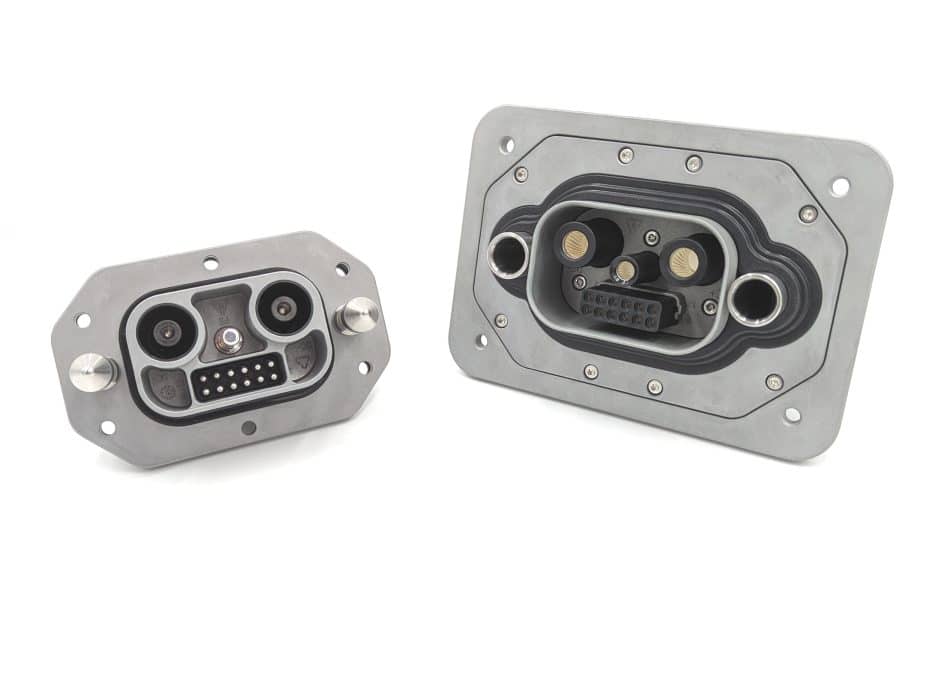

PowerLok FSC is a highly durable blind mate battery fast swap connection system focused on Heavy Equipment applications. PFSC provide grounding, signal and high current power contacts at 1000VDC for 10,000+ mating cycles.
PowerLink HV USA Cable
NEW – Get Development Quantities ASAP Boxed Cable in stock NOW at TTI: PowerLink USA at TTI Introducing, PowerLink HV USA, our latest high-performance high-voltage cable, proudly made in the USA by Amphenol TFC, engineered to meet the demands of modern electric and hybrid vehicles, as well as industrial applications for harsh environments. Designed and tested to meet and exceed … Read More

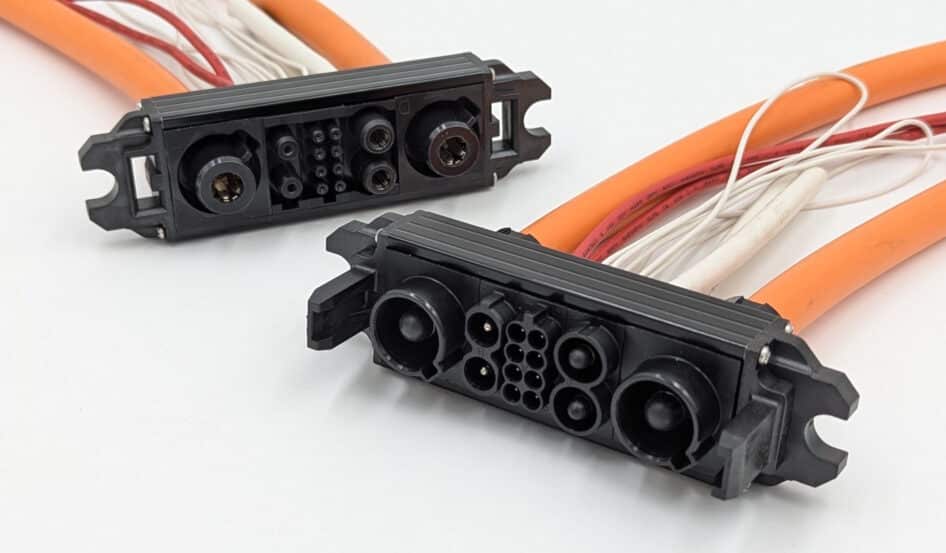

BSC – Battery Swap/Stack Connection System
BSC (Battery Swap/Stack Connection) system provides a modular blind mate system for compact power & signal requirements. A variable frame design using aluminum extrusions provides unlimited customization while maintaining durability and rigidity in a cost-effective package. This series combines a high-strength thermoplastic shell, aluminum alloy frame, precision stamped terminals, and high-conductivity machined power contacts for optimal electrical and mechanical performance. … Read More

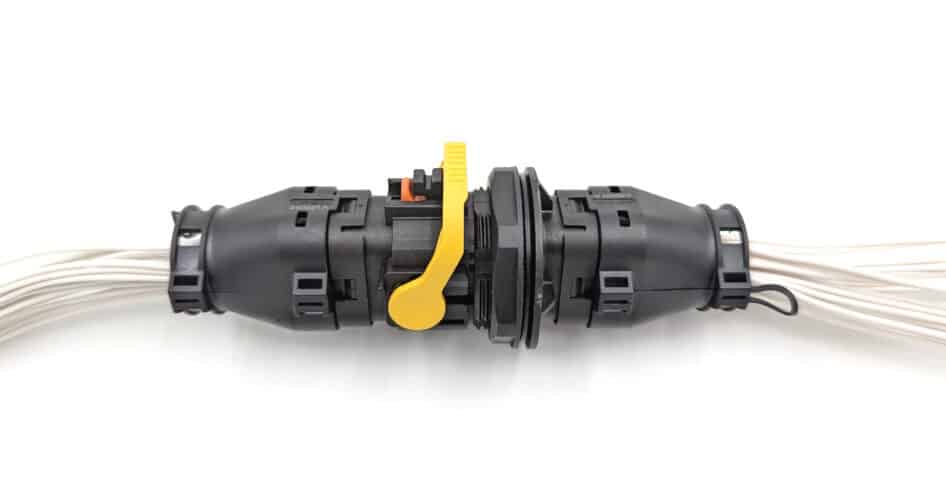

USCL Series – Power & Signal Connectors – Lever Lock
USCL (Ultra Sealed Connector, Lever lock) is a high position count, high performance sealed connector series to meet outdoor long-term use in harsh environment conditions; providing users a highly reliable electrical interconnection solution. USCL delivers the highest standard of electrical and mechanical performance ensuring heavy equipment, commercial, and off-road vehicles run safer and efficient with more reliability. USCL provides greater … Read More

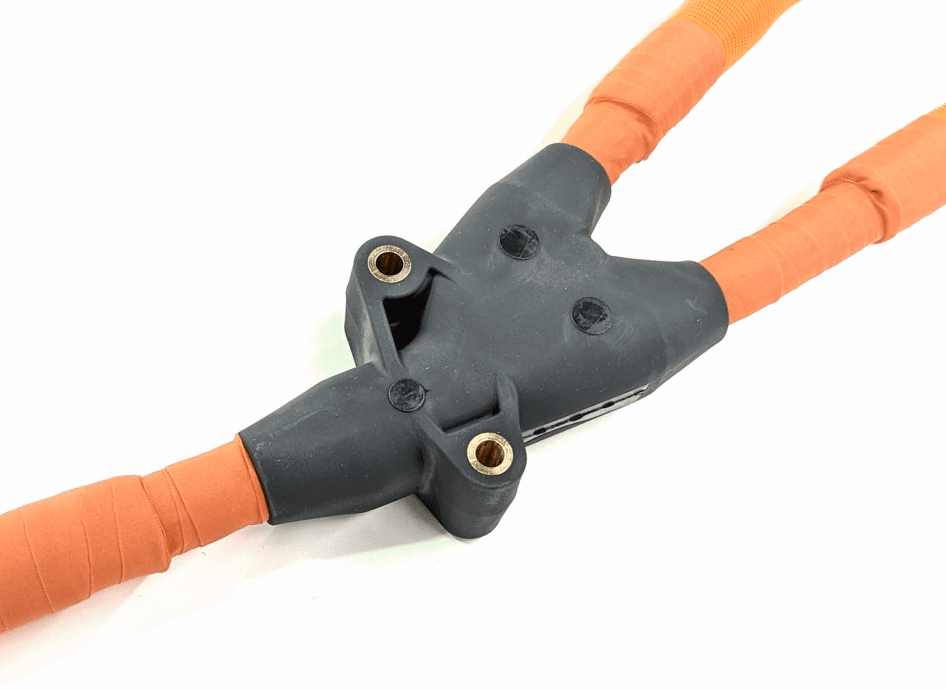

Custom Molded Solutions
Custom molded solutions (fuses, splices, flange, routing aid, clamp, securement, backshell overmold, etc.) for low & high voltage applications (48V, 60V, 600V, 1000V, 1500V, 2kV+) provide enhanced sealing and electrical isolation while reducing size and space for critical routing/packaging requirements. Options with and without shielding. Hybrid cable and busbar (rigid and flexible) integration options.

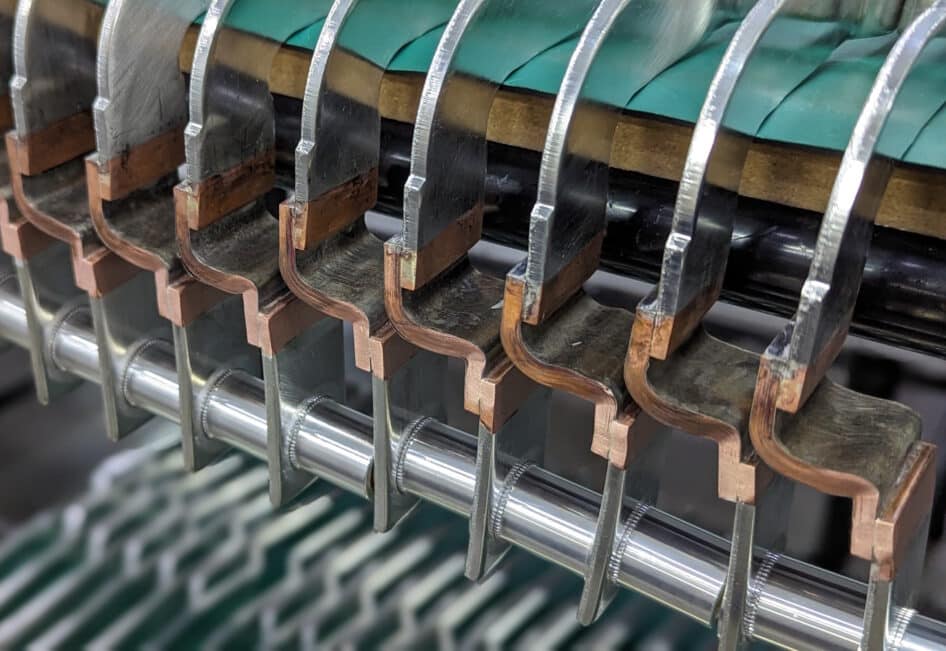

Busbars, Terminals & Lugs
High voltage rigid and flexible (braid or laminated) busbars and custom terminals/lugs for any application. Copper and Aluminum. Custom geometry with overmolded features for securement, routing, and/or sealing. Powdercoat and epoxy dip capabilities. Optional overmolding provides enhanced insulation thickness provides environmental sealing along with greater durability and electrical performance to standard coated busbars. Flexible busbar options or hybrid rigid to … Read More
PowerLink Cable
Amphenol PowerLink HV Cable is used for high voltage, high temperature, and flame-resistance applications. PowerLink provides a high voltage, flexible, electromagnetically shielded cable for applications on EV, HEV, FCEV, Battery and Energy Storage wiring systems with stranding options from 2.5 up to 150mm2 – with and without shielding. Compatible with PowerLok G1 connectors and many other Amphenol EV connectors.
HC Series – Power & Signal Connector
HC Series connectors are designed as a high-performance, cost-effective solution for signal and power transmission from PDU’s and battery packs. 32 pin and 16 pin configurations. The connector has integrated both signal and power transmission in one compact housing. 32 pin version includes 6 power and 26 signal circuits. 16 pin version includes 2 power and 14 signal circuits.

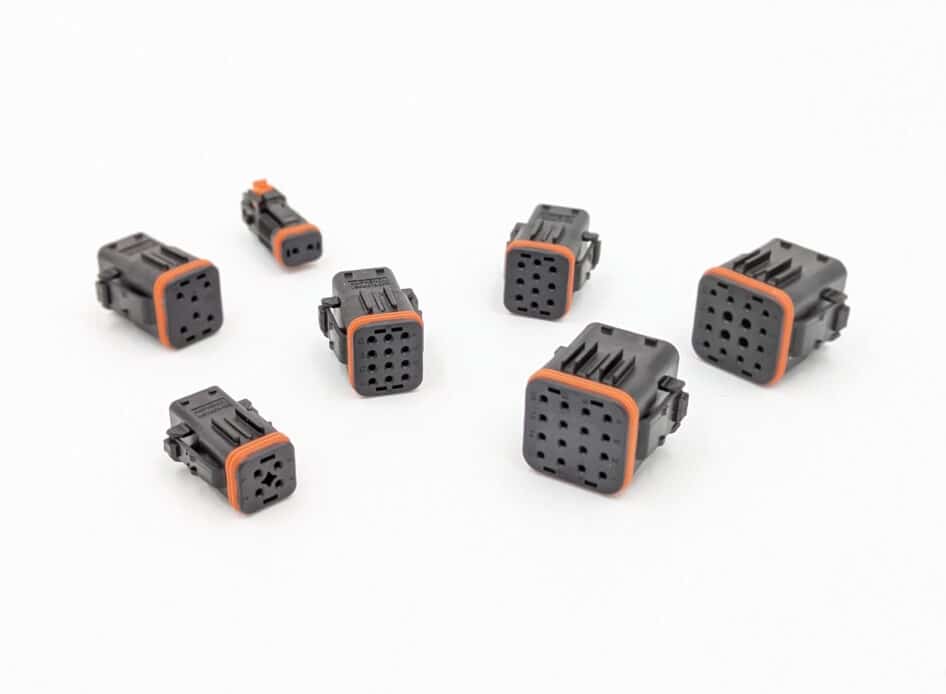

USCM Series – Power & Signal Connectors – Dual Latch
USCM (Ultra Sealed Connector, Multiple poles) is a high performance sealed connector series to meet outdoor long-term use in harsh environment conditions; providing users a highly reliable electrical interconnection solution. USCM delivers the highest standard of electrical and mechanical performance ensuring heavy equipment, commercial, and off-road vehicles run safer and efficient with more reliability. USCM provides greater performance in sealing … Read More

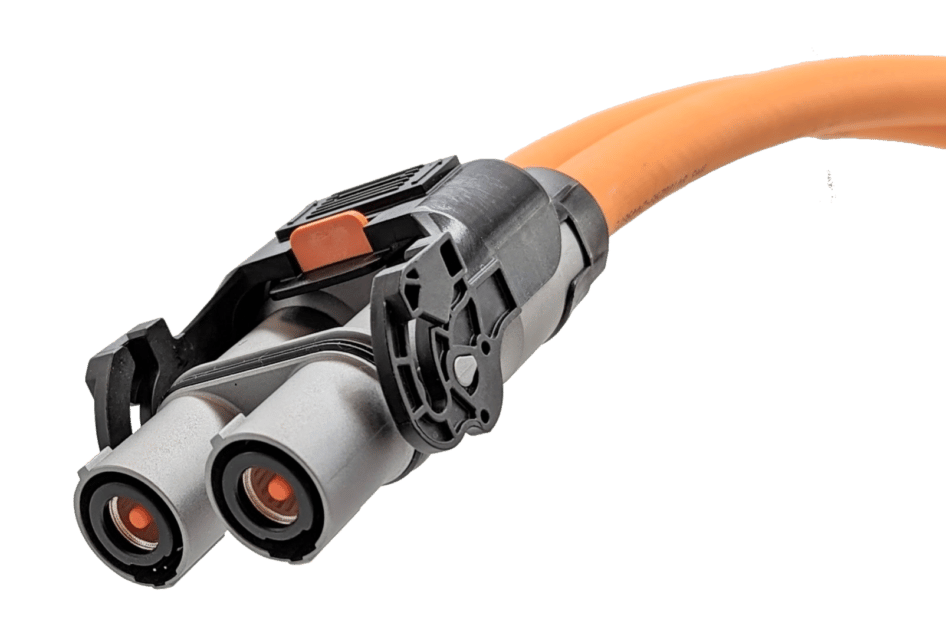

PowerLok G2
PowerLok G2 is a high performance, compact, aluminum alloy interconnect solution utilizing RADSOK® contact technology for EV and Hybrid transportation applications. G2 provides electrical ratings up to 1500VDC and 500A (Continuous @ 80°C Ambient) with IP67/6K9K sealing, 360° shielding, 500 hr salt spray, multiple keying options, straight and right-angle configurations, and up to 3 positions. G2 is available as field … Read More
PowerLok G1
PowerLok G1 is a low cost, compact, metal-shell interconnect solution utilizing RADSOK contact technology for EV and Hybrid transportation applications. Up to 1000V ranging from 5A-500A (Continuous @ 80°C) with HVIL, 360° shielding, environmental sealing, keying, straight and right-angle configurations, and up to 4 power circuits. Accommodates cable sizes from 2.5mm2 to 150mm2 with and without shielding. Available as assembled … Read More
High Voltage Cable Assemblies – EV/HEV
ATPI not only provides high voltage connectors, we build high voltage cable assemblies for EV/HEV and other electrification applications using Amphenol and non-Amphenol connectors for primary power distribution, accessory devices, battery connections and charge port assemblies. Quality is critical to safety – all assemblies are 100% tested for continuity, hipot, and IR at minimum. Additional capabilities for pressure/leak testing, functional … Read More
